Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall
Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall
Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall

Large Image :  Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Plastic Honeycomb Gravel Grid

,

Customized Road Gravel Grid

,

Retaining Wall Gravel Grid

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall





Product Introduction

Hdpe geocells Used for stabilizing highway and railway subgrades, as well as for embankment and shallow water channel management that can with stand gravity loads. It can also be used to prevent landslides and mixed retaining walls that can withstand gravity loads. When encountering soft foundations, geocells can greatly reduce construction labor intensity, reduce roadbed thickness, and have fast construction speed and good performance, greatly reducing project costs. In some special projects, such as permafrost areas, loess collapsible roadbeds, and roadbeds in wind and sand areas, the superiority of geocells is undoubtedly demonstrated.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 3

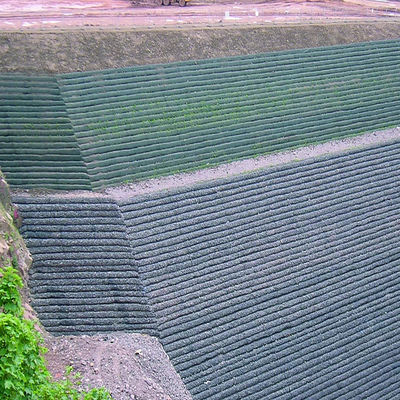

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 4



INVENTION AND TESTING

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 5



PRODUCT AREA

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 6



CERTIFICATES

Customized Road Gravel Grid Plastic Honeycomb Hdpe Geocell For Retaining Wall 7
