150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid
150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid
150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid

Large Image :  150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

Textured Perforated 75mm HDPE Geocell

,

HDPE HDPE Geocell

,

HDPE Geocell Honeycomb Grid

150mm 100mm 75mm 50mm China Manufacturer Textured Perforated Plastic HDPE Geocell Honeycomb Grid





Product Introduction

Hdpe geocells are used in buildings to reduce erosion, stabilize soil, protect pathways, and provide structural reinforcement for load support and soil retention.

Geocells were first developed in the early 1990s as a method to improve the stability of roads and bridges. They quickly gained popularity due to their ability to stabilize soil and control steep ground erosion. Nowadays, geocells are used for various applications, including road construction, landfill sites, mining operations, and green infrastructure projects.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18









APPLICATION

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 1

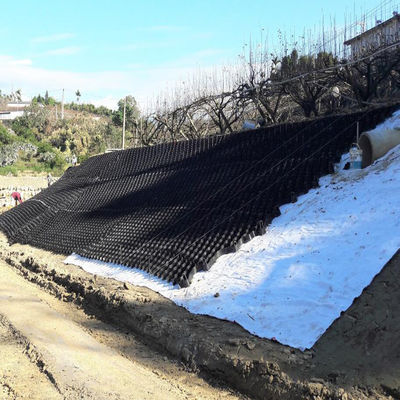

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 4



INVENTION AND TESTING

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 5



PRODUCT AREA

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 6



CERTIFICATES

150mm 100mm 75mm 50mm Textured Perforated Plastic HDPE Geocell Honeycomb Grid 7
