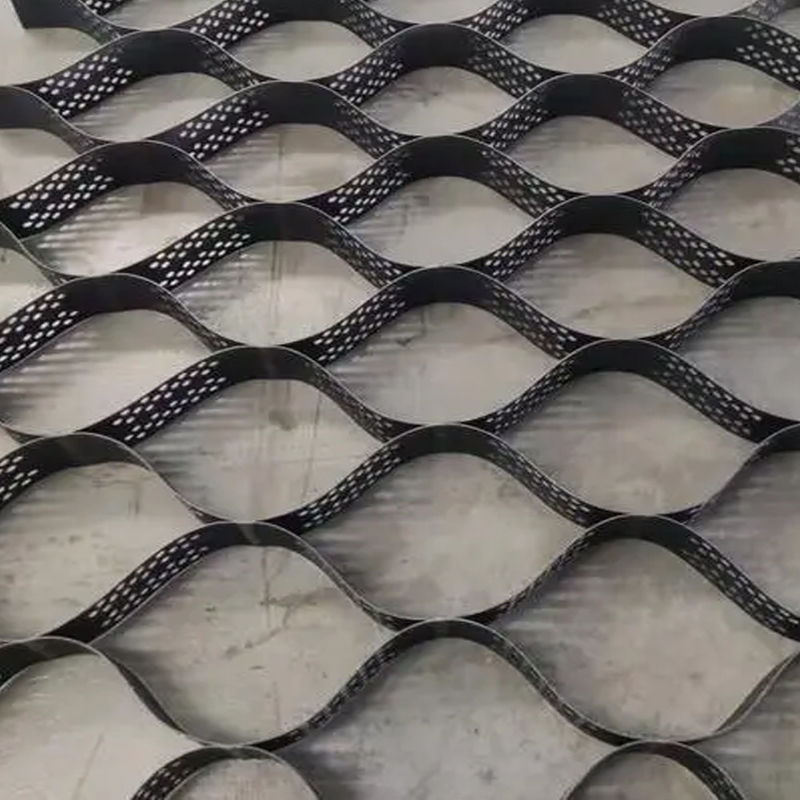

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell
150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell
150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell

Large Image :  150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

75mm HDPE Geocell

,

150mm HDPE Geocell

,

100mm HDPE Geocell

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell Price





Product Introduction

Hdpe Geocells are often used for reinforcing highway embankments
Soft soil subgrade treatment
Slope protection and other related works
During the journey. Due to its good mechanical properties, convenient construction, and low cost, geocells have been increasingly widely used and have good prospects for promotion and application. Geocells can be divided into two types: plastic geocells and high-strength geocells.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

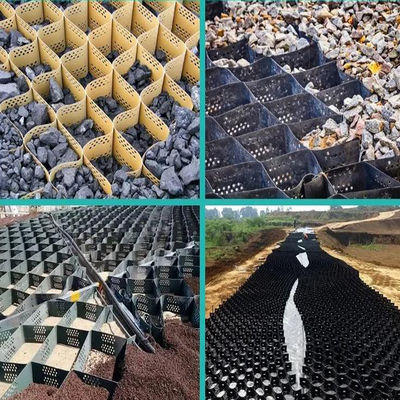

APPLICATION

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 0

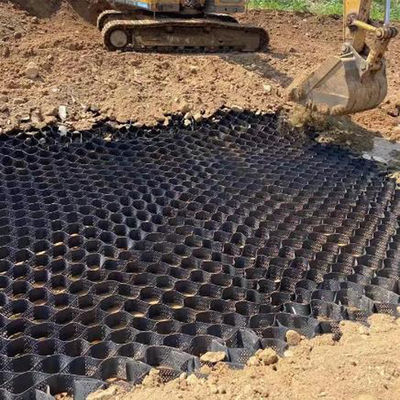

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 1

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 4



INVENTION AND TESTING

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 5



PRODUCT AREA

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 6



CERTIFICATES

150mm 100mm 75mm 50mm HDPE Geocell Erosion Control Virgin Material Plastic Geocell 7
