Customized HDPE Geocells For Building Industry And Construction Projects

Customized HDPE Geocells For Building Industry And Construction Projects
Customized HDPE Geocells For Building Industry And Construction Projects
Customized HDPE Geocells For Building Industry And Construction Projects Customized HDPE Geocells For Building Industry And Construction Projects Customized HDPE Geocells For Building Industry And Construction Projects Customized HDPE Geocells For Building Industry And Construction Projects

Large Image :  Customized HDPE Geocells For Building Industry And Construction Projects

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: 1.5-100-445
Payment & Shipping Terms:
Minimum Order Quantity: 1000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 2000㎡ per day
Contact Now

Customized HDPE Geocells For Building Industry And Construction Projects

Description
Raw Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 50mm-300mm Geomax Model: GM445
Color: Black, Green, Brown, Black Yellow White Green, Green Or As Per Request Welding Space: 445mm
Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Highlight:

HDPE Geocells For Construction Projects

,

Customized HDPE Geocells

,

Building Industry HDPE Geocells

Customized HDPE Geocells For Building Industry And Construction Projects





Product Introduction

Product advantages of hdpe geocell:

1. The material is lightweight, wear-resistant, chemically stable, resistant to light and oxygen aging, acid and alkali, suitable for different soil conditions such as soils and deserts.

2. High lateral restraint and anti slip, anti deformation, effectively enhancing the bearing capacity of the roadbed and dispersing loads.

3. Changing the geometric dimensions such as geogrid height and welding distance can meet different engineering needs.

4. Flexible expansion and contraction, small transportation volume; Convenient connection and fast construction speed.



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

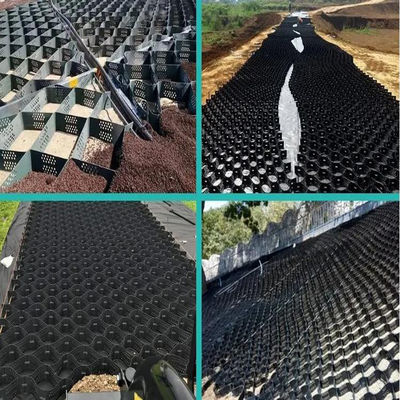

APPLICATION

Customized HDPE Geocells For Building Industry And Construction Projects 0

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Customized HDPE Geocells For Building Industry And Construction Projects 1

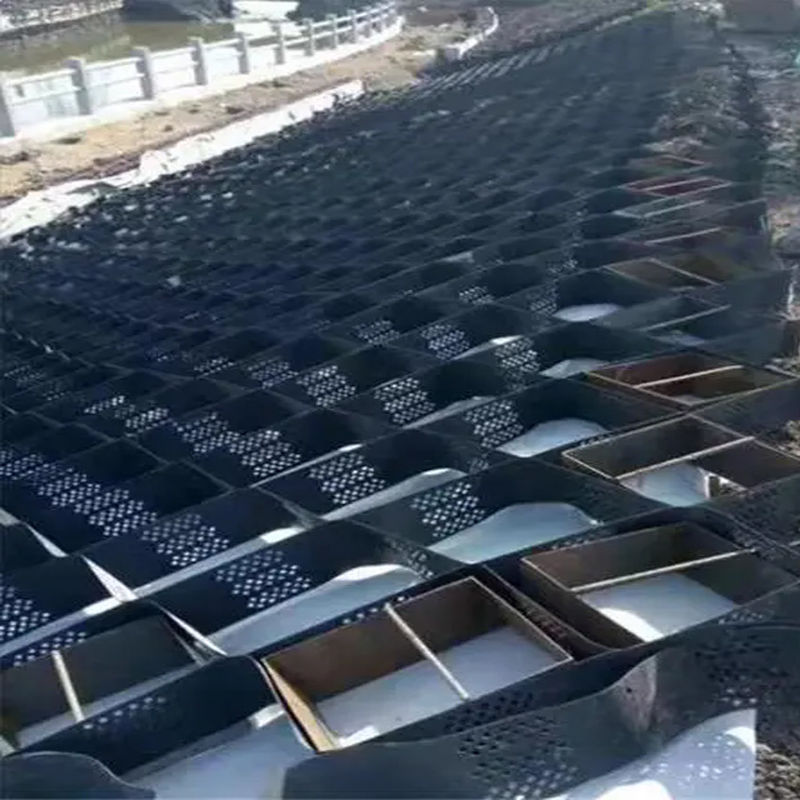

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Customized HDPE Geocells For Building Industry And Construction Projects 2

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Customized HDPE Geocells For Building Industry And Construction Projects 3

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Customized HDPE Geocells For Building Industry And Construction Projects 4



INVENTION AND TESTING

Customized HDPE Geocells For Building Industry And Construction Projects 5



PRODUCT AREA

Customized HDPE Geocells For Building Industry And Construction Projects 6



CERTIFICATES

Customized HDPE Geocells For Building Industry And Construction Projects 7
