Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-300mm | Geomax Model: | GM356 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 356mm |
Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | Road Grass Geocell,Slop Protection Geocell,High Strength Geocell |
356mm Plastic Grid Gravel Stabilizer Paver Slope Soil Protection HDPE Honeycomb Geocell
Product Introduction

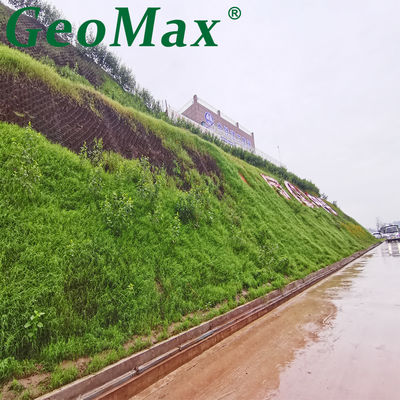

Geocells along with anchoring techniques ensure the long-term stability of slopes using vegetated topsoil, aggregate, or concrete surfacing. The enhanced drainage, frictional forces, and cell-soil-plant interaction prevents downslope movement and limit the impact of raindrops, channeling, and hydraulic shear stresses.

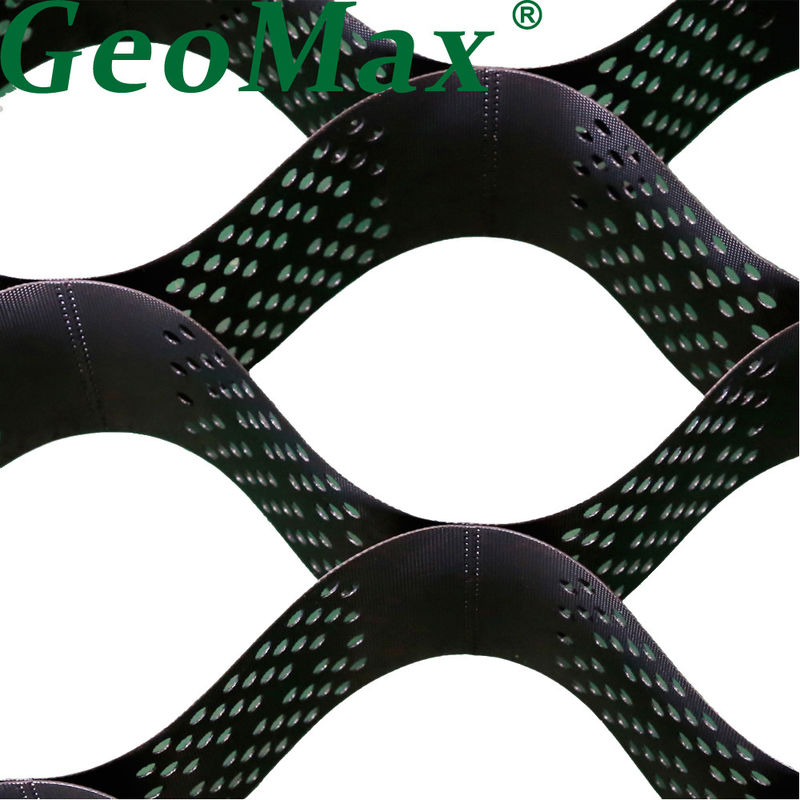

Geocell effectively controls erosion as the cells prevent movement of the infill. The confined infill therefore acts as a counterweight on sloped areas and improves stability. Perforations in the 3D cellular confinement system allow the passage of water, nutrients, and soil organisms. This encourages plant growth and root interlock, which further stabilizes the slope and soil mass, and facilitates landscape rehabilitation.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
