Product Details:
|
Raw Material: | HDPE Plastic | GeoMax Standard: | ASTM |
---|---|---|---|
Cell Height: | 50mm-300mm | Geomax Model: | GM356 |
Color: | Black, Green, Brown, Black Yellow White Green, Green Or As Per Request | Welding Space: | 432mm |
Cell Thickness: | 1.5mm | Geocell Surface: | Textured&Perforated |
Highlight: | Perforated HDPE Geocell,Road Reinforcement HDPE Geocell,Textured HDPE Geocell |

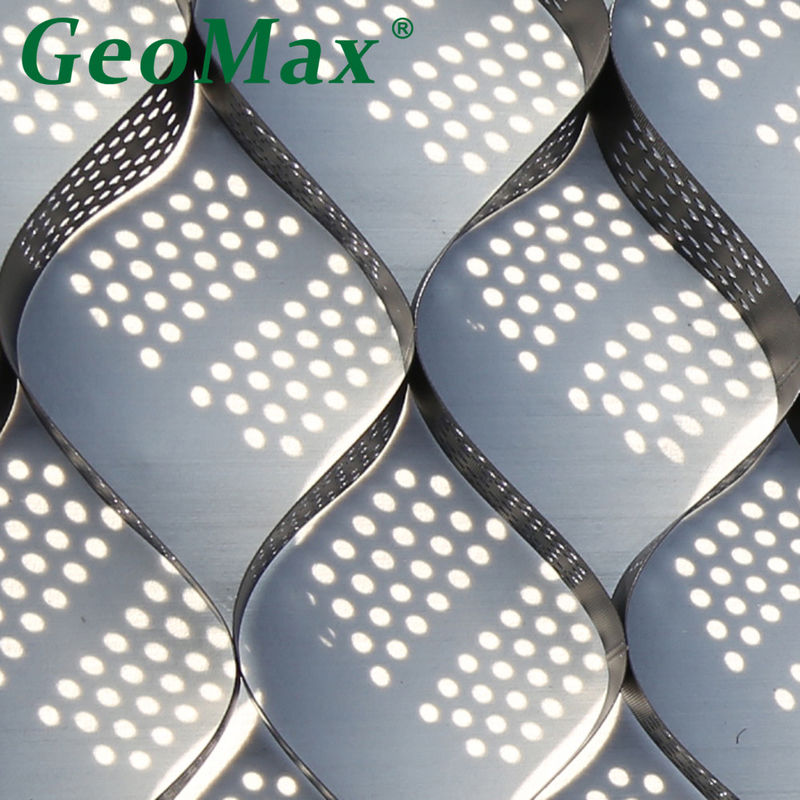

HDPE Geocell Textured/Perforated Retaining Wall/Road Reinforcement
Product Introduction
HDPE GEOCELLS Used for slope and embankment protection. When used for slope protection, the unfolded grid walls form layers of retaining walls, which can greatly alleviate the flow velocity of water and avoid the formation of slope runoff. The grid can be filled with soil, and grass and shrubs can be planted on top. In the case where vegetation cannot be restored on the original slope, ideal greening effects can still be achieved, which has immeasurable environmental value. In addition, due to its integrity and certain flexibility, the geogrid greatly compensates for the defects such as looseness, collapse, and overhead of the rubble skeleton protection, and is a very ideal geosynthetic material for slope protection with fast construction and low cost.
Specifications
Index Properties | Test Method | Units | Values | |||||||
Material | - | - | 100% Virgin HDPE | |||||||
Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
Dimensions | ||||||||||
Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 |
![]() |
|
![]() |
|
![]() |
|
![]() |
|
