HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT
HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT
HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT

Large Image :  HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM150-356
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT

Description
HDPE Geocell Material: 100% HDPE Plastic Thickness: 1.5mm
Geocell Standard: ASTM;GB Welding Distance: 356mm
Height: 150mm GeoMax Model: 150-356
Color: Black;Green;Yellow Geocell Surface: Smooth;Textured;Perforated
HDPE GeocellDensity: 0.935-0.965 G/cm3
Highlight:

ESCR OIT HDPE Geocell

,

Ground Grid HDPE Geocell

,

Textured Perforated HDPE Geocell

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 0



HDPE Geocell Product Introduction

GeoMax® has over 20 years of experience in producing cellular confinement systems, offering a high-performance, multifunctional product supported by more than 100 patented innovations.

We ensure the GeoMax® system meets the highest standards by manufacturing it in strict adherence to ISO and CE certifications, assuring exceptional performance. The system’s efficiency relies on the strength of its seams and the integrity of its welds. Through advanced production technology and rigorous quality control measures, we provide reliable and high-performance solutions to our customers.

• Conformity with ISO 9001:2016 International Standards



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

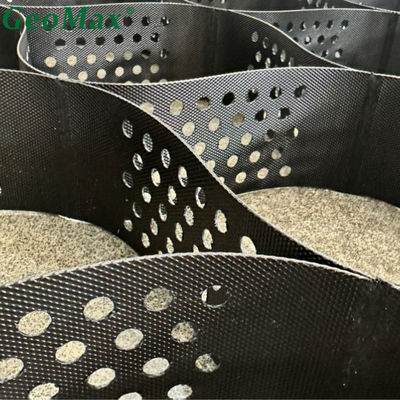

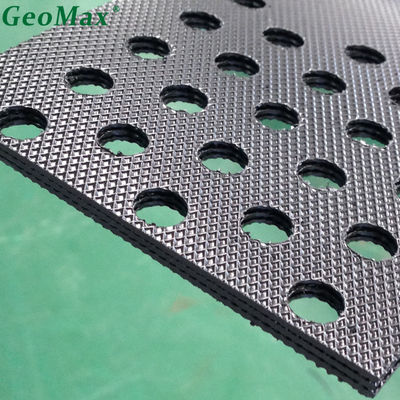

DETAILED PHOTOS



HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 1 HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 2

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 3 HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 4

APPLICATIONS

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 5

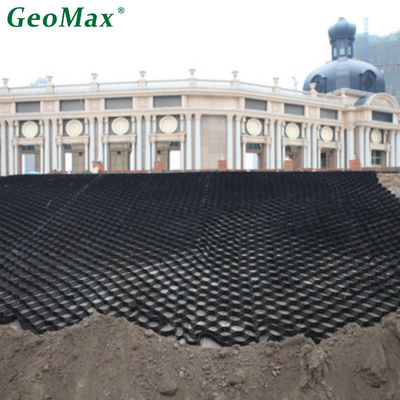

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 6

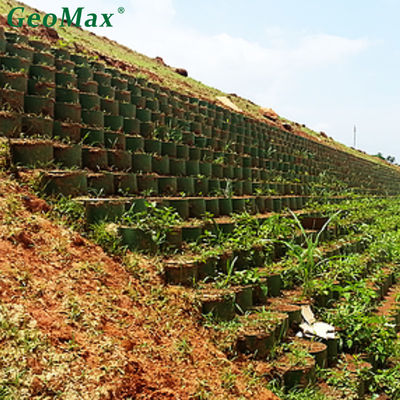

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 7

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 8

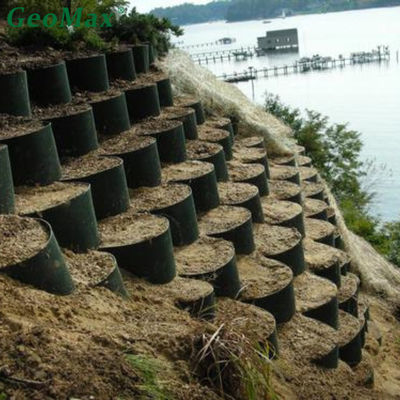

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 9



INVENTION AND TESTING

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 10

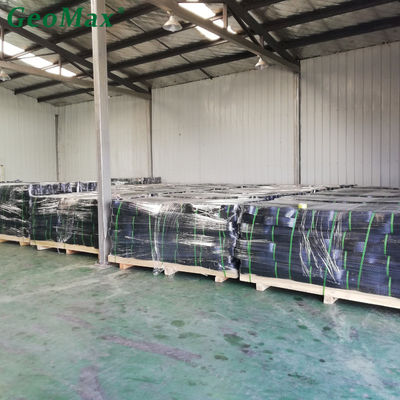

PRODUCT AREA

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 11



CERTIFICATES

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 12

PHOTO OF THE EXHIBITION

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 13



FAQ:



Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are constructed from robust, high-density polyethylene (HDPE), delivering strength similar to that of concrete. Engineers apply ultrasonic welding at designated intervals to enhance the system’s overall strength. Furthermore, the product includes perforations, which enable natural drainage, making it an excellent choice for commercial applications.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.



Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.

HDPE Geocell 150mm Height 356mm Welding Space For Slop Protection Ground Grid Textured Perforated ESCR OIT 14
