High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization
High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization
High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization

Large Image :  High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM150-330
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization

Description
Material: 100% Virgin HDPE Plastic Thickness: 1.5mm
Standard: ASTM Standard Or GB Standard Height: 150mm
GeoMax Model: 150-330 Geocell Welding Space: 330mm
Geocell Surface: Smooth;Textured;Perforated HDPE GeocellDensity: 0.935-0.965 G/cm3
Color: Green,Black,Yellow
Highlight:

Perforated HDPE Geocell

,

150mm Height HDPE Geocell

,

Soil Stablization HDPE Geocell

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 0



HDPE Geocell Product Introduction

GeoMax® boasts over 20 years of expertise in the development and production of cellular confinement systems, delivering a highly efficient, multifunctional solution backed by more than 100 patented innovations.

To ensure exceptional quality and performance, we manufacture the GeoMax® system in strict accordance with ISO and CE standards. The system's effectiveness relies on maximum seam strength and consistent weld quality, which are achieved through our advanced machinery and precise manufacturing processes. This enables us to provide our customers with reliable, high-performance products tailored for diverse applications.

• Full Compliance with ISO 9001:2016 Global Standards
• CE Certification to Ensure Performance and Safety
• Designed for Optimal Performance in Complex Engineering and Environmental Projects



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

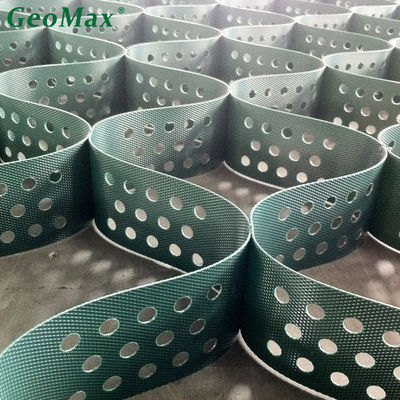

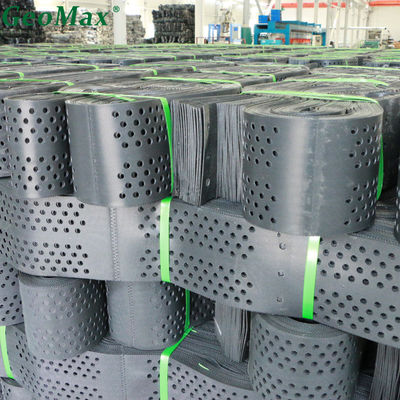

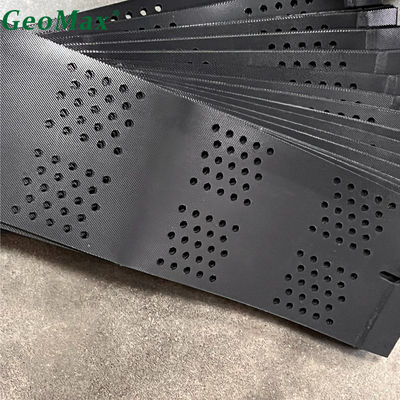

DETAILED PHOTOS



High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 1 High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 2

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 3 High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 4

APPLICATIONS

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 5

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 6

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 7

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 8

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

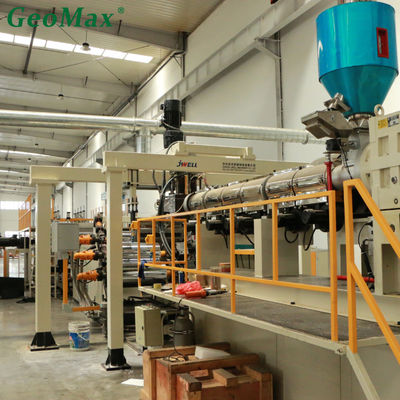

PRODUCTION LINE

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 9



INVENTION AND TESTING

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 10

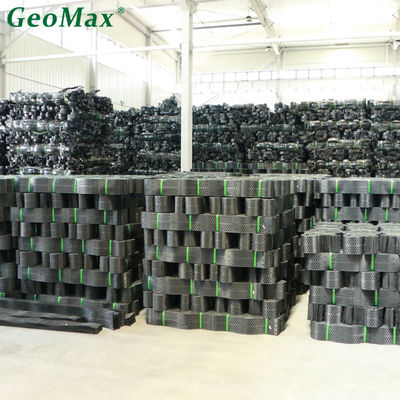

PRODUCT AREA

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 11



CERTIFICATES

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 12

PHOTO OF THE EXHIBITION

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 13



FAQ:



Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are made out of a thick high-density polyethylene (HDPE) that's as strong as concrete. Engineers ultrasonically welded Geocell at certain intervals for maximum strength. Also, the product has perforation (holes) that provide natural drainage in your commercial project.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.



Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.

High Strength 150mm Height HDPE Geocell Ground Grid Perforated ESCR OIT For Soil Stablization 14
