Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer
Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer
Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer

Large Image :  Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM200-356
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer

Description
Material: 100% Virgin HDPE Plastic Thickness: 1.5mm
Standard: ASTM Or GB Standard Height: 200mm
Model Size: 200-356 Color Customize: Black; Yellow; Green
Welding Distance: 356mm Surface: Smooth;Textured;Perforated
Density: 0.950 G/cm3
Highlight:

200mm Height HDPE Geocell

,

356mm Welding Distance HDPE Geocell

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 0



Geocell Product Introduction

GeoMax® leverages over 20 years of expertise in the engineering and production of cellular confinement systems, offering a robust, multifunctional solution supported by more than 100 patented innovations.

To uphold exceptional performance standards, the GeoMax® system is manufactured in strict conformance with ISO and CE certifications. Its effectiveness is contingent upon superior seam strength and weld integrity, achieved through the integration of advanced manufacturing technologies and stringent quality assurance processes. This ensures the delivery of high-performance, durable solutions across a wide range of civil and environmental applications.

• Conformance with ISO 9001:2016 Quality Management Systems
• CE Marking for Compliance with European Safety and Performance Standards
• Engineered for Optimal Performance in Demanding Geotechnical and Environmental Conditions



Specifications

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

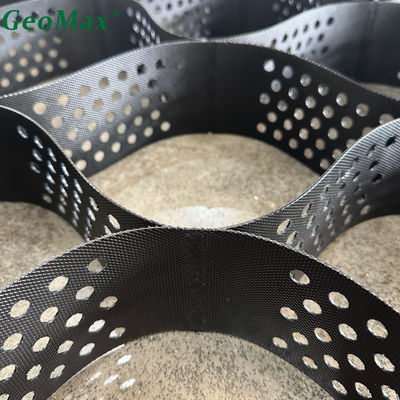

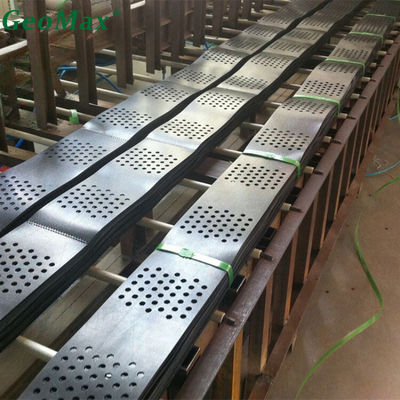

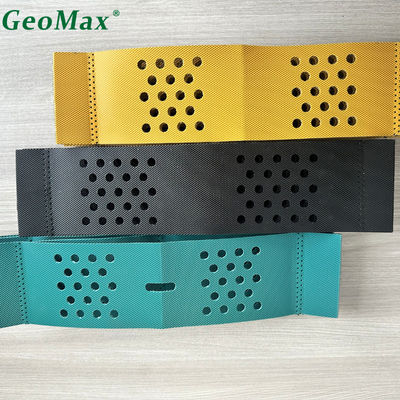

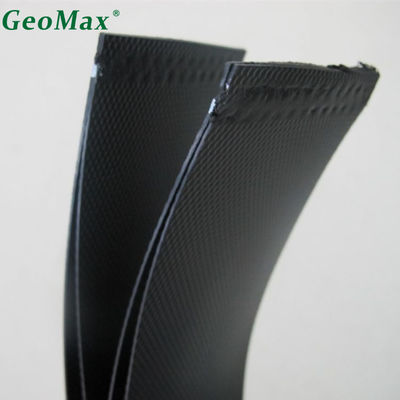

DETAILED PHOTOS



Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 1 Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 2

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 3 Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 4

APPLICATIONS

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 5

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 6

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 7

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 8

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

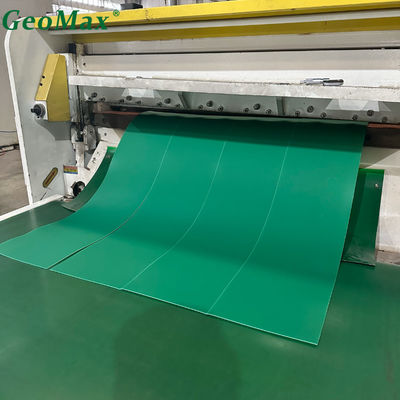

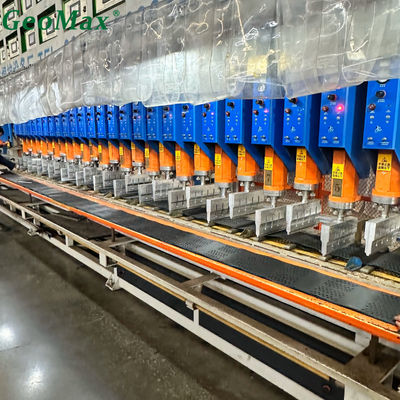

PRODUCTION LINE

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 9



INVENTION AND TESTING

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 10



PRODUCT AREA

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 11



CERTIFICATES

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 12

PHOTO OF THE EXHIBITION

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 13



FAQ:



Q: What is Geocell made out of ?
A: Our honeycomb geocell structures are made out of a thick high-density polyethylene (HDPE) that's as strong as concrete. Engineers ultrasonically welded Geocell at certain intervals for maximum strength. Also, the product has perforation (holes) that provide natural drainage in your commercial project.

Q: What if my project dimensions are different than the Geocell panels ?
A: We can custom-design Geocell foundation grids to meet whatever project demands you have. Drainage pipes, trees, and other obstacles are not an issue when laying a solid geocell base. You can fit flexible Geocell panels around these objects that you can't do with concrete and steel.



Q: What GeoMax Geocell product testing has been done? Can I see the product specs?
A: Our support team would be glad to speak with you about product testing and specs. We consult your project through a free commercial evaluation to learn your specific needs. Schedule one now and we can get back to you in a few hours.

Q: Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui China.

Q: Can you do customize size ?
A: Yes, we can do customized strictly as your requirement.

Q: What Standard can you do?
A: We can do ASTM Standard and GB Standard, we can do customize standard as well.

Green HDPE Geocell 200mm Height 356mm Welding Distance For Slope Protection Channel Protection Gravel Grid Manufacturer 14
