Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails

Name: Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM75-330
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(260)

Slope Protection Geocell
(81)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails

Large Image : Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	CE
Model Number:	GM75-330

Payment & Shipping Terms:

Minimum Order Quantity:	2500 ㎡
Price:	Negotiation

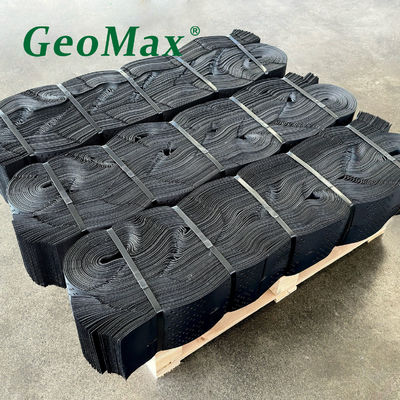

Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C, D/A, D/P, Western Union
Supply Ability:	3000㎡ per day

Contact Now

Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails

Description

Material:	HDPE Plastic	GeoMax Standard:	ASTM
Cell Height:	75mm	Geomax Model:	GM75-330
Color:	Black; Green; Yellow	Welding Space:	330mm
Cell Thickness:	1.5mm	Geocell Surface:	Textured&Perforated
Highlight:	75mm HDPE Geocell , 330mm HDPE Geocell , Black HDPE Geocell

Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails

Black HDPE Geocell 75mm Height 330mm Welding Space For Horse Paths Yards ATV Trails 0

GeoMax® Geocell Product Introduction

GeoMax® stands at the forefront of the geotechnical industry, leveraging over 20 years of expertise in the design and production of advanced cellular confinement systems. Our geocell products are engineered for versatility and high performance, and are backed by more than 100 patented innovations. These innovations ensure that our solutions consistently meet the demands of even the most challenging projects.

We prioritize superior quality in every aspect of our production process. All GeoMax® geocell systems are manufactured to meet the highest standards, fully compliant with ISO and CE regulations. These rigorous certifications ensure that our products not only meet global quality standards but also offer enhanced performance and safety in the field.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

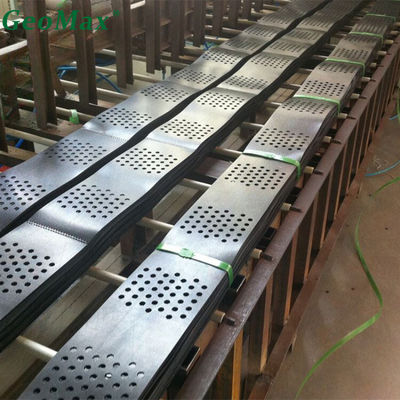

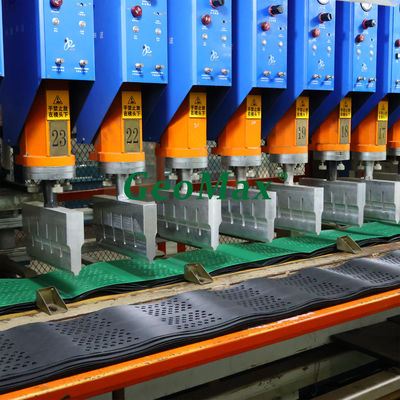

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

FAQ:

Q: What is Geocell made from?
A: Our geocell structures are constructed from a thick high-density polyethylene (HDPE), offering strength comparable to concrete. The Geocell panels are ultrasonically welded at specific intervals for maximum durability. Additionally, the panels feature perforations that allow for natural drainage in your commercial projects.

Q: What if the dimensions of my project differ from the Geocell panels?
A: We can provide custom-designed Geocell foundation grids to meet the unique specifications of your project. Obstacles such as drainage pipes, trees, and other structures won't be an issue when laying a Geocell base. You can easily fit the flexible Geocell panels around these elements, something that's not possible with concrete or steel.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China, in facilities that follow strict quality control measures to ensure reliable, high-performance products.

Q: Do you offer customized sizes?
A: Yes, we can manufacture custom sizes based on your specific requirements.

Q: What standards do you follow?
A: We adhere to both ASTM and GB standards, and can also accommodate custom standards as per your needs.

Q: What applications are best suited for Geocell?
A: Geocell is perfect for soil stabilization, erosion control, load support, and slope protection in projects like roads, railways, retaining walls, green roofs, and even landscaping.
