Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial
Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial
Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial

Large Image :  Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM150-356
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial

Description
Material: 100% HDPE Thickness: 1.5mm
Standard: ASTM Or GB Standard Height: 150mm
Model Size: 150-356 Color: Black; Yellow; Green
Welding Distance: 356mm Surface: Smooth;Textured
Density: 0.950 G/cm3 Slope Steepness: 4:1
Highlight:

Landfill Lining HDPE Geocell

,

Black HDPE Geocell

,

Slope Revetments HDPE Geocell

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial



Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 0



GeoMax® Geocell Product Introduction



GeoMax® has been a trusted leader in the geotechnical industry for over 20 years, specializing in high-performance cellular confinement systems. With more than 100 patented innovations, our geocell products are designed to deliver exceptional strength, flexibility, and reliability — even for the most complex and demanding projects.
We are dedicated to upholding the highest quality standards throughout the entire production process. Every GeoMax® geocell system is manufactured in compliance with ISO and CE certifications, ensuring superior performance, safety, and global quality assurance for a wide range of engineering and environmental applications.

The GeoMax® Geocell system can improve resistance to erosion and offer an effective solution for slope surface stability. When filled with materials such as rock, concrete, or soil, the Geocell confines these infill materials. This significantly increases the passage rate of water, nutrients, and soil organisms, which stabilizes the slope and soil mass, further promoting plant growth and root interlock. Given the challenges of slope construction, the Geocell system can substantially ease the process, reducing both cost and time.



SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

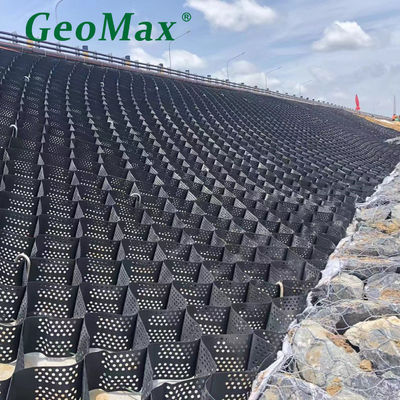

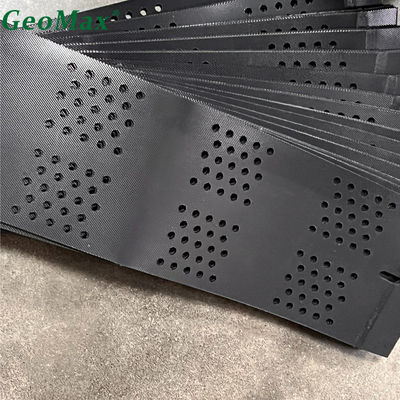

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 1 Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 2

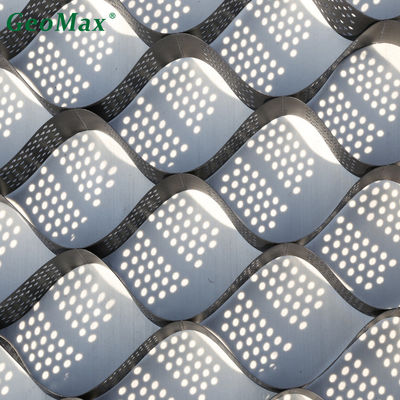

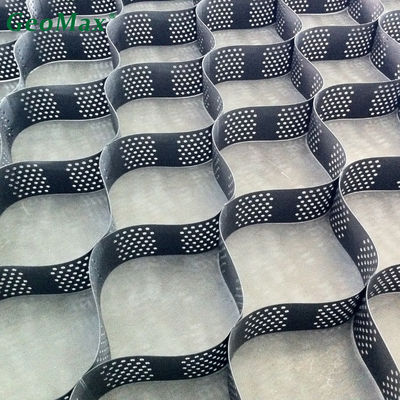

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 3 Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 4

APPLICATIONS

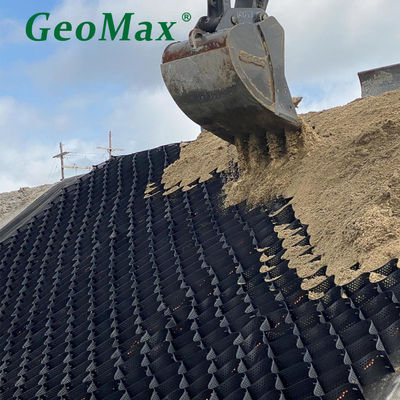

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 5

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 6

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 7

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 8

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.



PRODUCTION LINE

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 9



INVENTION AND TESTING

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 10



PRODUCT AREA

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 11



CERTIFICATES

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 12

PHOTO OF THE EXHIBITION

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 13



FAQ:

Q: What is Geocell made from?
A: Our Geocell panels are crafted from high-density polyethylene (HDPE), providing concrete-like strength. The panels are ultrasonically welded to enhance durability and include perforations to support natural drainage.


Q: What if my project dimensions don’t match the Geocell panels?
A: That’s not a problem! We offer custom Geocell grids tailored to your project’s specifications. The flexible design allows the panels to contour around obstacles like pipes, trees, or structures — an advantage over rigid materials like concrete or steel.


Q: What kind of testing has GeoMax Geocell undergone? Can I see the product specifications?
A: Yes! Our team is ready to share details about product testing and specifications. We also offer a free project evaluation to understand your needs and recommend the best solution. Just schedule a consultation, and we’ll get back to you within a few hours.


Q: Where is GeoMax Geocell manufactured?
A: GeoMax Geocell is produced in Anhui, China, in state-of-the-art facilities with strict quality control to ensure each product meets high-performance standards.


Q: Can you provide customized Geocell sizes?
A: Yes, we can produce Geocell panels in custom sizes to match your specific project requirements.


Q: What standards does GeoMax Geocell comply with?
A: We rigorously test our products to comply with ASTM and GB standards. We can also share detailed specifications or conduct a free evaluation to align with your project’s needs.


Q: How does GeoMax Geocell help prevent erosion on slopes?
A: GeoMax Geocell confines infill materials like soil or rock, reducing soil displacement and water runoff. This stabilizes the slope surface and prevents erosion, even on steep terrain.

Black HDPE Geocell 150mm Height 356mm Welding Space For Slope Revetments Landfill Lining Heavy Industrial 14
