Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization
Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization
Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization

Large Image :  Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM200-660
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization

Description
Material: 100% HDPE Thickness: 1.5mm
Standard: ASTM Or GB Standard Height: 200mm
Model Size: 200-660 Color: Green; Black; Yellow
Welding Distance: 660mm Surface: Smooth;Textured
Density: 0.950 G/cm3
Highlight:

Subbase Stabilization HDPE Geocell

,

200mm Height HDPE Geocell

,

Tree Root protection HDPE Geocell

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root protection Subbase Stabilization​



Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 0



GeoMax® Geocell Product Introduction



With more than 20 years of industry expertise, GeoMax® has established itself as a leading innovator in geotechnical solutions, specializing in cutting-edge cellular confinement systems. Our geocell products are designed for versatility and superior performance, supported by over 100 patented advancements. These innovations allow us to consistently deliver dependable, high-quality solutions tailored for complex and challenging projects.
At GeoMax®, we uphold the highest quality standards throughout the entire manufacturing process. Every geocell system we produce fully complies with ISO and CE certifications, ensuring our products meet international quality benchmarks. This commitment guarantees exceptional performance and safety across diverse engineering and environmental applications.



SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

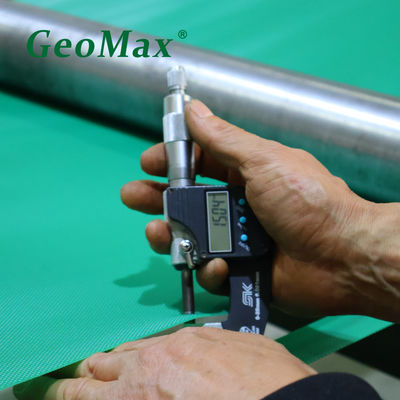

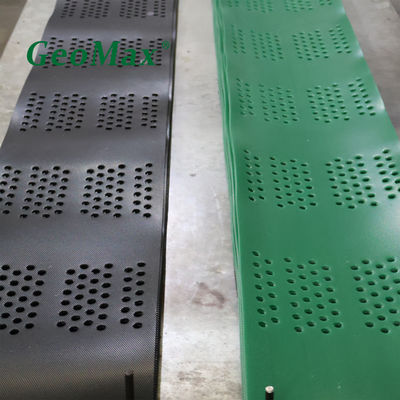

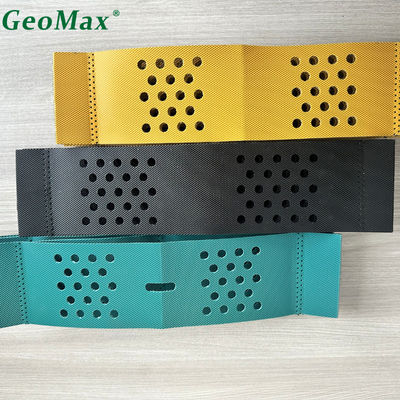

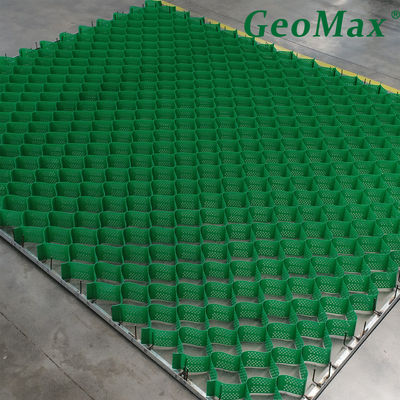

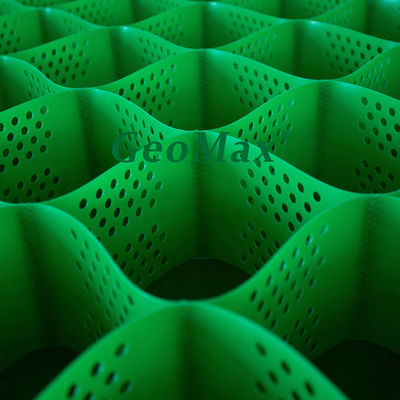

DETAILED PHOTOS

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 1 Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 2

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 3 Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 4

APPLICATIONS

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 5

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 6

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 7

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 8

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

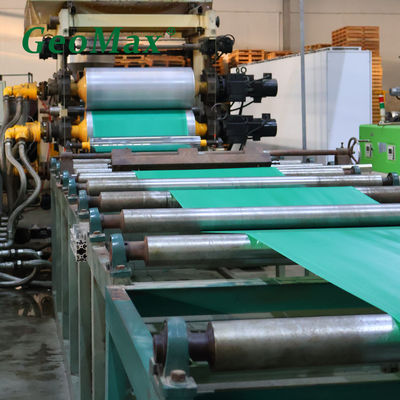

PRODUCTION LINE

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 9



INVENTION AND TESTING

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 10



PRODUCT AREA

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 11



CERTIFICATES

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 12

PHOTO OF THE EXHIBITION

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 13



FAQ:

Q: What is Geocell made from?
A: Our Geocell structures are made from thick high-density polyethylene (HDPE), offering strength comparable to concrete. The panels are ultrasonically welded for maximum durability and feature perforations for natural drainage.



Q: What if my project dimensions don’t match the Geocell panels?
A: No problem! We offer custom-designed Geocell grids to fit your project. The flexible panels can easily adjust around obstacles like drainage pipes, trees, and structures — something rigid materials like concrete or steel can't do.



Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.



Q: Do you offer customized sizes?
A: Yes, we can manufacture custom sizes based on your specific requirements.



Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.



Q: What are the most common applications for Geocell?
A: Geocell is ideal for applications like soil stabilization, erosion control, load distribution, and slope protection. It’s widely used in roads, railways, retaining walls, green roofs, landfills, and landscaping projects.

Green HDPE Geocell 200mm Height 660mm Welding Space For Tree Root Protection Subbase Stabilization 14
