Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall
Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall
Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall

Large Image :  Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: CE
Model Number: GM150-445
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 3000㎡ per day
Contact Now

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall

Description
Material: HDPE Plastic GeoMax Standard: ASTM
Cell Height: 150mm Geomax Model: GM150-445
Color: Black; Green; Yellow Welding Space: 445mm

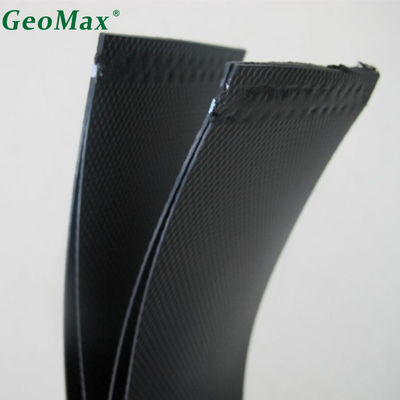

Cell Thickness: 1.5mm Geocell Surface: Textured&Perforated
Cell Embedment: 3 Cells Panel Expansion: 4.48m*0.87m
Highlight:

150mm Height HDPE Geocell

,

445mm Welding Space HDPE Geocell

,

Black HDPE Geocell

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall​



Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 0



GeoMax® Geocell Product Introduction



GeoMax® Geocell Retaining Walls not only enhance the natural beauty with their vegetated outer layer but also offer flexibility, making them ideal for challenging project conditions such as soft subgrades, limited access, and space constraints. Geocell Systems are known for their durability, water resistance, and flexibility, providing a cost-effective and eco-friendly alternative to conventional earth retention methods. These systems allow for rainwater to seep through the wall fascia, reducing runoff. GeoMax® Geocells can be layered to form a gravity-based retaining wall, which relies on its mass for stability. This type of wall is straightforward to build using local materials. Moreover, gravity retaining walls offer a flexible construction advantage, permitting them to adapt to diverse underlying soil conditions while maintaining their structural integrity.



SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18





















APPLICATION

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 1

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 2

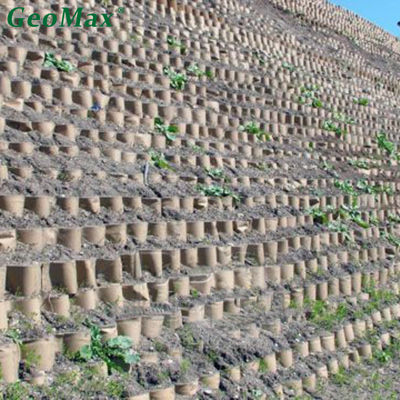

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 3

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 4

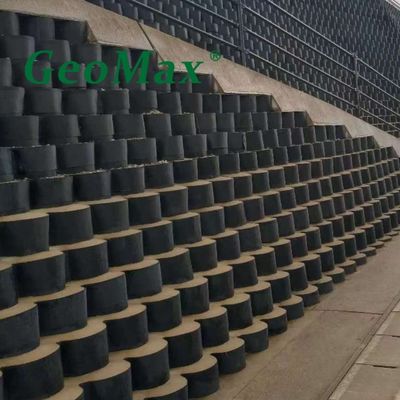

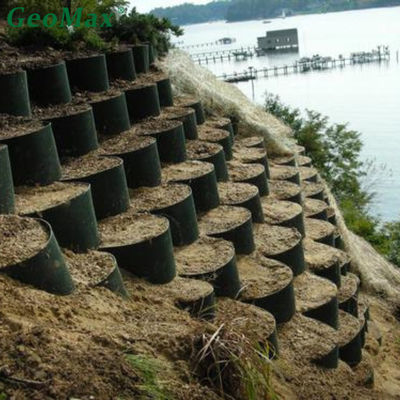

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

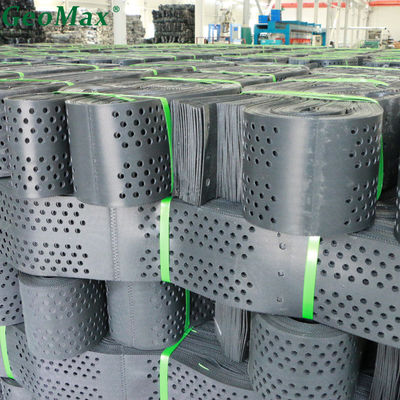

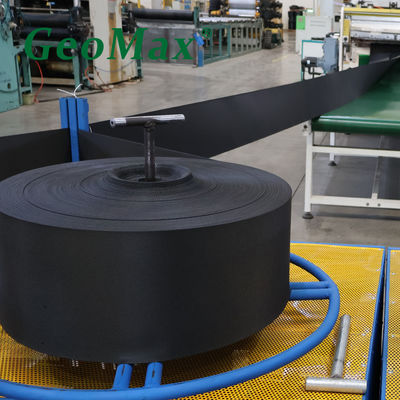

PRODUCTION LINE

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 5



INVENTION AND TESTING

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 6



PRODUCT AREA

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 7



CERTIFICATES

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 8



FAQ:

Q: What is Geocell made from?
A: Our Geocell structures are made from high-density polyethylene (HDPE), providing strength comparable to concrete. The panels are ultrasonically welded at precise intervals to ensure durability and feature perforations that support natural drainage.



Q: What if the dimensions of my project differ from the Geocell panels?
A: We offer custom-designed Geocell foundation grids to meet your project’s exact specifications. The flexible panels can easily adapt to obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot do.



Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China, in facilities that follow strict quality control measures to ensure reliable, high-performance products.



Q: Do you offer customized sizes?
A: Yes, we can manufacture custom sizes based on your specific requirements.



Q: What standards do you follow?
A: We adhere to both ASTM and GB standards, and can also accommodate custom standards as per your needs.



Q: What applications are best suited for Geocell?
A: Geocell is perfect for soil stabilization, erosion control, load support, and slope protection in projects like roads, railways, retaining walls, green roofs, and even landscaping.



Q: What are the benefits of using GeoMax® Geocell Retaining Walls?
A: GeoMax® Geocell Retaining Walls combine aesthetics with functionality, featuring a vegetated outer layer and flexibility for challenging conditions like soft subgrades and space constraints. They are durable, water-resistant, and cost-effective, providing an eco-friendly alternative to traditional retaining walls. Their permeable design reduces runoff, and they can be stacked to form gravity walls that are easy to build using local materials while maintaining structural integrity.

Black HDPE Geocell 150mm Height 445mm Welding Space For Retaining Walls River Walls Gabion Replacement Vegetated Wall 9
