Product Details:
|
| Material Content: | 100% HDPE | Thickness: | 1.5mm |
|---|---|---|---|
| Standard: | ASTM Or GB Standard | Height: | 200mm |
| Model: | GM200-356 | Color Selection: | Green; Black |
| Welding: | 356mm | Surface: | Smooth;Textured； |
| Density: | 0.950 G/cm3 | ||
| Highlight: | Railways Support Pier HDPE Geocell,Airport Runways HDPE Geocell,Large Vehicles HDPE Geocell |
||

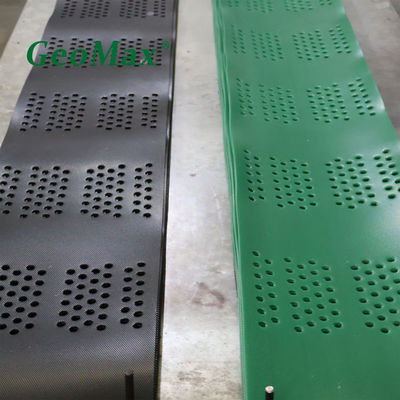

Green Black HDPE Geocell 200mm Height 356mm Welding Space For Railways Support Pier Airport Runways Large Vehicles Heavy Industrial
GeoMax® Geocell Product Introduction
With over 20 years of expertise, GeoMax® is a leading innovator in geotechnical engineering, specializing in advanced cellular confinement systems. Designed for versatility and high performance, our geocell solutions incorporate more than 100 patented technologies, allowing us to deliver reliable, high-quality solutions for even the most complex infrastructure and construction challenges.
At GeoMax®, we prioritize quality at every stage of production. Our geocell systems are manufactured in full compliance with ISO and CE certifications, ensuring they meet global industry standards. This commitment guarantees exceptional durability, performance, and safety across diverse engineering and environmental applications.
SPECIFICATIONS
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
DETAILED PHOTOS
|
SOIL REINFORCEMENTGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
FAQ:
Q: What is Geocell made from?
A: GeoMax® Geocell is manufactured using high-density polyethylene (HDPE), a robust material known for its durability and structural integrity, comparable to concrete. The panels are ultrasonically welded to enhance strength and feature perforations that facilitate efficient drainage.
Q: What if my project dimensions don’t match the Geocell panels?
A: GeoMax® Geocell undergoes rigorous testing to ensure compliance with industry standards. Our team is available to provide detailed product specifications and technical data. Additionally, we offer a complimentary project evaluation to determine the most suitable solution for your needs. You can request an assessment, and we will respond promptly.
Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.
Q: Do you offer customized sizes?
A: Yes, we can manufacture custom sizes based on your specific requirements.
Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
Q: What are the most common applications for Geocell?
A: GeoMax® Geocell is widely used for soil stabilization, erosion control, load distribution, and slope reinforcement. It is an effective solution for infrastructure projects such as road construction, railways, retaining walls, green roofs, landfills, and landscaping applications.
