Product Details:
|
| Material: | 100% HDPE Plastic | Thickness: | 1.5mm |
|---|---|---|---|
| Standard: | ASTM Or GB Standard | Height: | 50mm |
| Model Size: | GM50-356 | Color: | Green; Yellow; Black |
| Welding Distance: | 356mm | Surface: | Smooth;Textured; |
| Density: | 0.950 G/cm3 | ||
| Highlight: | 356mm Welding Space HDPE Geocell,HDPE Geocell For Paths Pavement,50mm Height HDPE Geocell |
||

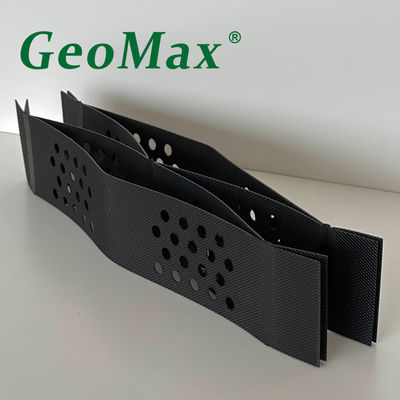

Black HDPE Geocell 50mm Height 356mm Welding Space For Roadways Cycling Paths Pavement
GeoMax® Geocell Product Introduction
GeoMax® has been a leading innovator in the geotechnical industry for over two decades, specializing in advanced cellular confinement systems. With a portfolio exceeding 100 patented technologies, our geocell solutions are engineered for exceptional structural integrity, flexibility, and durability, effectively addressing the demands of complex and high-performance applications.
We uphold rigorous quality control measures throughout our manufacturing process. Each GeoMax® geocell system is produced in strict accordance with ISO and CE certification standards, ensuring superior performance, safety, and compliance with international engineering and environmental regulations.
SPECIFICATIONS
| Index Properties | Test Method | Units | Values | |||||||
| Material | - | - | 100% Virgin HDPE | |||||||
| Carbon Black content | ASTM D 1603 | % | ≥1.5 | |||||||
| Density | ASTM D 1603 | g/cm3 | 0.935-0.965 | |||||||
| Sheet Thickness ± 3% | ASTM D 5199 | mm | 1.5 | |||||||
| Seam Peel Strength | USACE GL-86-19 | KN/m | ≥14.2 | |||||||
| Tensile strength at Yield | ASTM D 1603 | KN/m | ≥22 | |||||||
| Environmental stress crack resistance | ASTM D 1603 | hrs | ≥5000 | |||||||
| OIT oxidation induction time | ASTM D 1603 | min | ≥150 | |||||||
| Type | GM330 | GM356 | GM400 | GM432 | GM445 | GM500 | GM660 | GM712 | ||
| Welding Distance(mm) ± 3% | 330 | 356 | 400 | 432 | 445 | 500 | 660 | 712 | ||
| Cell Depth(mm) ± 3% | 50,75,100,150,200,250 | |||||||||
| Dimensions | ||||||||||
| Expanded Cell Size (width×length) (mm) ± 3% | 250 x 210 | 260 x 225 | 290 x 260 | 320 x 275 | 315 x 300 | 360 x 300 | 470 x 450 | 510 x 475 | ||
| Expanded Cell numbers(width×length) | 10 x 34 | 9 x 34 | 8 x 34 | 8 x 34 | 8 x 34 | 7 x 34 | 5 x 34 | 5 x 34 | ||
| Expanded Section size (width×length) (m) ± 3% | 2.50 x 7.14 | 2.34 x 7.65 | 2.32 x 8.84 | 2.56 x 9.35 | 2.52 x 10.2 | 2.52 x 11.22 | 2.35 x 15.3 | 2.55 x 16.15 | ||
| Expanded Section Area (m2) ± 5% | 17.85 | 17.9 | 20.5 | 23.94 | 25.7 | 28.74 | 35.95 | 41.18 | ||
DETAILED PHOTOS
|
SOIL REINFORCEMENTGeomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. |
|
SLOPE PROTECTIONGeomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. |
|
CHANNEL PROTECTIONGeomax®(Hdpe Geocell) delivers stability and protection of channels |
|
RETAINING WALLSGeomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. |
PRODUCTION LINE
INVENTION AND TESTING
PRODUCT AREA
FAQ:
Q: What is Geocell made from?
A: Our Geocell panels are manufactured using high-density polyethylene (HDPE), delivering structural integrity comparable to concrete. Engineered with ultrasonic welding for superior durability, they also incorporate perforations to facilitate effective water permeability and natural drainage.
Q: What if my project dimensions don’t match the Geocell panels?
A:
Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team is available to provide detailed insights into the testing and specifications of GeoMax Geocell. We offer a complimentary commercial evaluation to assess your project requirements and recommend the most suitable solutions. You can request an evaluation, and our experts will respond within a few hours.
Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is manufactured in Anhui, China, at our state-of-the-art production facility. Our advanced manufacturing processes ensure consistent quality and compliance with international standards, delivering high-performance geocell solutions for various engineering applications worldwide.
Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.
Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
