BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES
BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES
BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES

Large Image :  BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE
Model Number: GM100-330
Payment & Shipping Terms:
Minimum Order Quantity: 2500 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES

Description
Material: 100% HDPE Plastic Cell Thickness: 1.5mm
Standard: ASTM; GB Standard Cell Height: 100mm
Size: GM100-330 Surface Tone: Green; Yellow; Black
Welding Distance: 330mm Surface: Smooth;Textured Surface
Cell Density: 0.950 G/cm3 Seam Peel Strength: 14.2 KN/m

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® HDPE Geocell is an engineered cellular confinement system developed to enhance soil strength, distribute loads evenly, and prevent erosion across challenging terrain. Made from high-density polyethylene, it offers excellent resistance to UV, chemicals, and environmental stress.

Available in smooth or textured finishes, GeoMax® geocells can be customized in height, wall thickness, and weld spacing to match diverse engineering needs. Each unit is produced under ISO and CE-certified processes, ensuring durability, precision, and consistent performance in demanding applications.

With over 20 years of experience and more than 100 patented innovations, GeoMax® supports global customers in road and railway construction, slope protection, mining infrastructure, and green engineering, delivering proven and economical solutions for ground stabilization challenges.

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

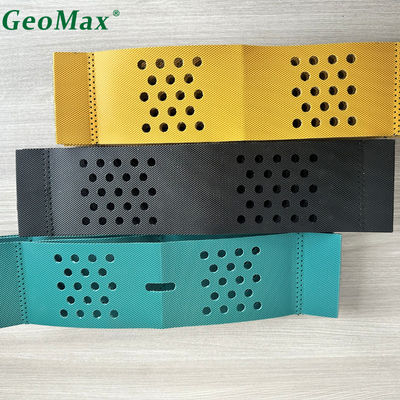

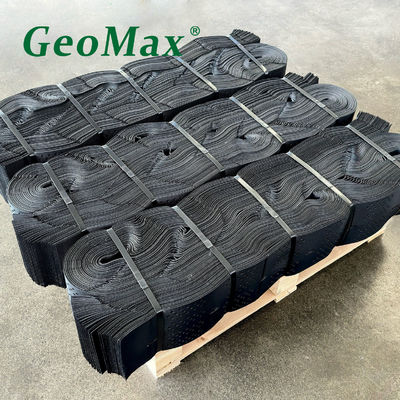

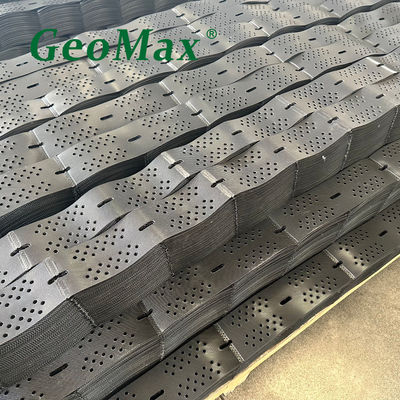

DETAILED PHOTOS

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 0 BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 1

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 2 BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 3

APPLICATIONS

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

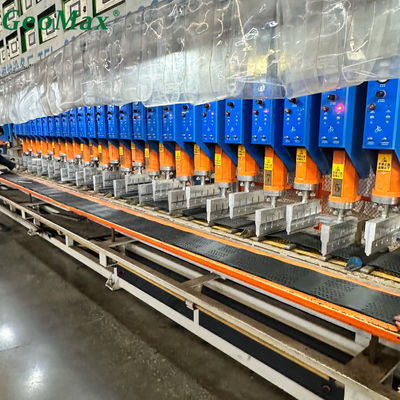

PRODUCTION LINE

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 8

INVENTION AND TESTING

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 9



PRODUCT AREA

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 10

CERTIFICATES

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 11

PHOTO OF THE EXHIBITION

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 12



FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.



Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.



Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.


Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.



Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.

BLACK HDPE GEOCELL 100MM HEIGHT 330MM WELDING SPACE FOR VEHICLE STAGING AREAS COMMERCIAL VEHICLES 13
