HDPE Geocell HPOIT Test High Strength Ground Grid Soil Reinforcement

Large Image : HDPE Geocell HPOIT Test High Strength Ground Grid Soil Reinforcement

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	CE,ISO9001-2015
Model Number:	GM50-660

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	5000㎡ per day

Contact Now

HDPE Geocell HPOIT Test High Strength Ground Grid Soil Reinforcement

Description

Materials:	HDPE Plastic	HPOIT:	400Min

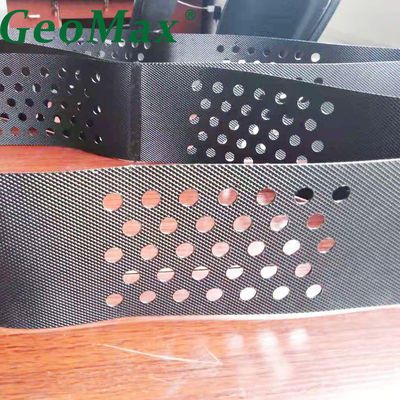

Height:	50mm	Perforated:	Yes
Color:	Black	Welding Distance:	660mm

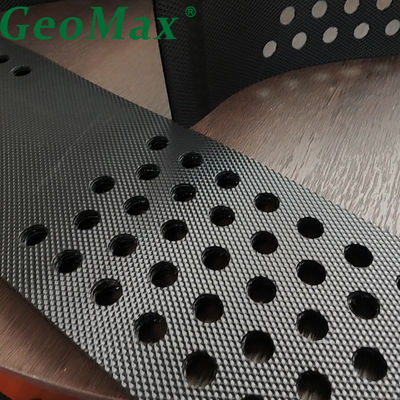

Thickness:	1.5mm	Textured:	Yes

HDPE Geocell HPOIT Test High Strength Ground Grid Soil Reinforcement

Product Introduction

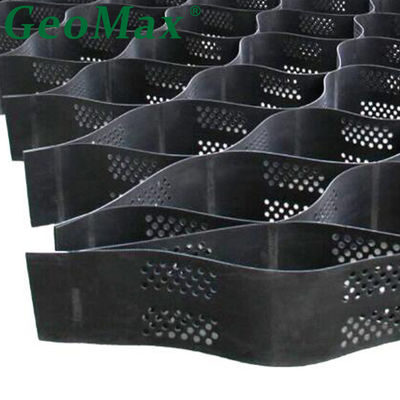

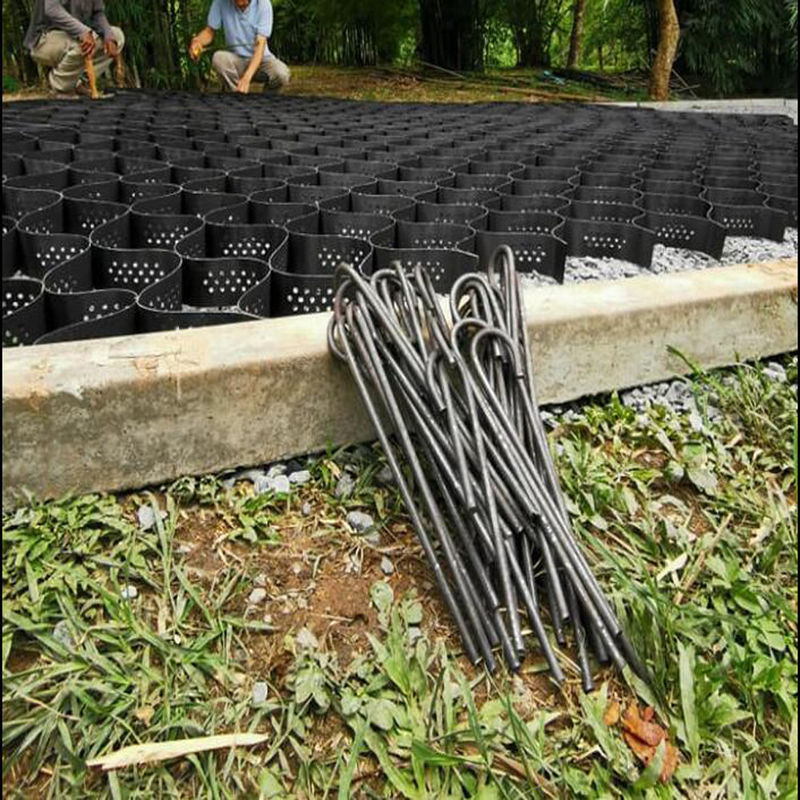

Hdpe Geocells are a versatile and effective geosynthetic material used in various construction projects for soil stabilization, erosion control, and load support. They are honeycomb-like structures made from high-density polyethylene (HDPE) strips welded together at their intersections. Installing geocells properly is crucial for their effectiveness, and this guide will walk you through the steps involved in laying the best base for your next construction project.

Specifications

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

APPLICATION

SOIL REINFORCEMETN

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES
