14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection
14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection

Large Image :  14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: Geomax
Certification: ISO9001-2015
Model Number: 100-660
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 4000㎡ per day

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection

Description
Geocell Material: HDPE Geocell Quality: ASTM/GB
Geocell Height: 100mm Geocell Color: Black, Green, Brown,
Geocell Welding Space: 660mm Cell Thickness: 1.5mm
Geocell Surface: Textured&Perforated&smooth
Highlight:

Tensile Strength textured perforated geocell

,

slope protection textured perforated geocell

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection

SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 0 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 1

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 2 14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 3

APPLICATIONS

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 5

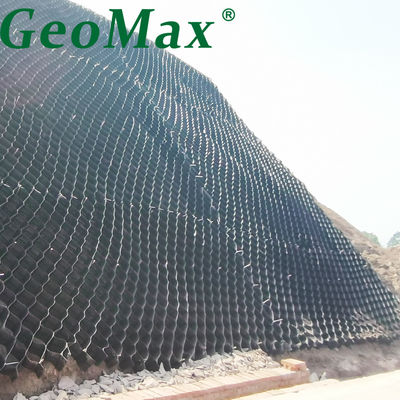

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

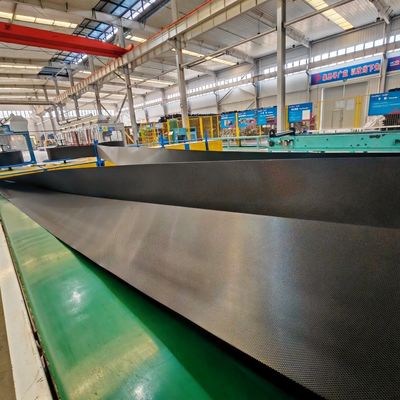

PRODUCTION LINE

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 8

INVENTION AND TESTING

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 9



PRODUCT AREA

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 10

CERTIFICATES

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 11

PHOTO OF THE EXHIBITION

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 12



FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.



Q: How strong are GeoMax Geocells ?

A:We stock Geocell products that can withstand natural disasters and mechanical and hydraulic stresses. The United States Army Corps installed geocell honeycomb structures as temporary access roads for tanks and other massive equipment. This same trustworthy foundation is what supports hundreds of commercial projects across the world.




Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.

14.2kN/m Textured Perforated Geocell 25kN/m Tensile Strength Slope Protection 13
