High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

Large Image : High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	Geomax
Certification:	ISO9001-2015
Model Number:	200-356

Payment & Shipping Terms:

Minimum Order Quantity:	4000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	4000㎡ per day

Contact Now

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

Description

Material:	HDPE	Quality:	ASTM/GB
Geocells Height:	100mm	Geocells Color:	Black, Green, Brown,
Geocells Welding Space:	660mm	Cells Thickness:	1.5mm
Geocells Surface:	Textured&Perforated&smooth	Description:	Smooth Textured Perforated
Highlight:	Retaining Wall Welded Geocell , High Tensile Strength Welded Geocell , HDPE Welded Geocell

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM

GeoMax®HDPE Welding Geocell is a three-dimensional mesh made of reinforced high-density polyethylene (HDPE) sheets and welded by ultrasonic, which can be filled with sand, soil or other site material. This cost-effective solution has multiple applications enabling reduced project costs and lower environmental impact, which is effortless and time-saving.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

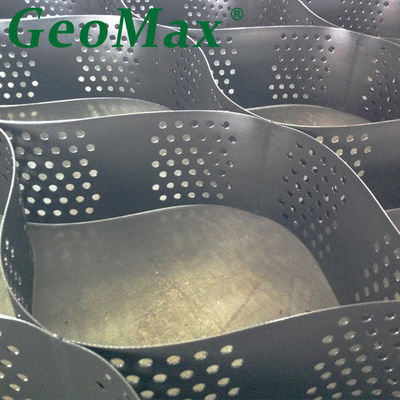

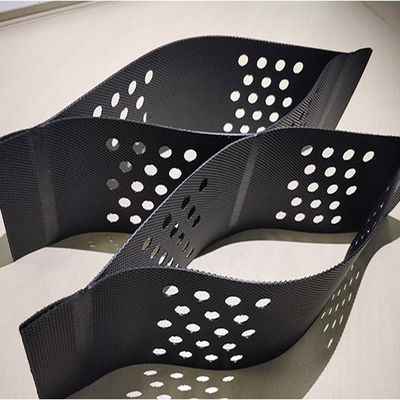

DETAILED PHOTOS

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

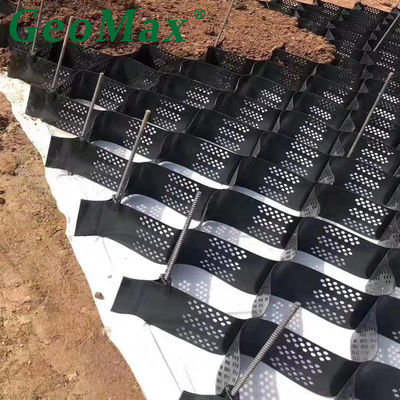

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

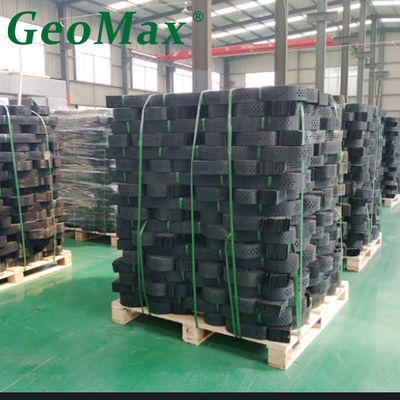

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

High Tensile Strength Welded Geocell HDPE UV Resistant OIT Retaining Wall 200mm Height 356MM*356MM 12

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: How strong are GeoMax Geocells ?

A:We stock Geocell products that can withstand natural disasters and mechanical and hydraulic stresses. The United States Army Corps installed geocell honeycomb structures as temporary access roads for tanks and other massive equipment. This same trustworthy foundation is what supports hundreds of commercial projects across the world.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.
