Retaining Wall 400 Min HPOIT Test HDPE Geocell Solutions Ground Grid Black 14.2kN/m Peeling Strength

GeoMax® has a long history of providing integrated geosynthetics product solutions for soil stabilization in projects around the world. Since 2006, GeoMax® has been developing and innovating the production of GeoMax® geocells geogrids and other geosynthetics designed for long-term use in critical applications. GeoMax® is committed to maintaining every customer with the best products and services. As present we are the largest geocell manufacture who owns the most production lines in china.

HDPE GEOCELL SPECIFICATION

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150
Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

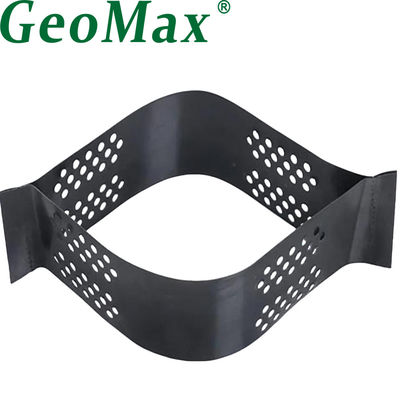

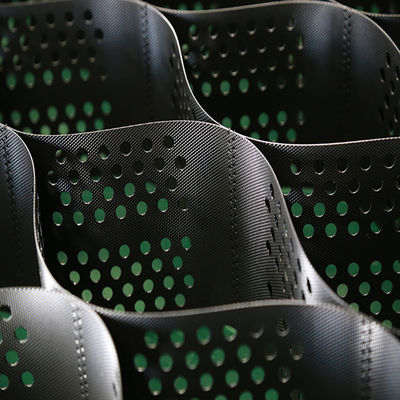

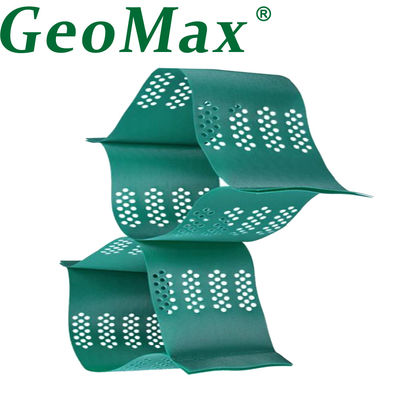

GEOCELL DETAILES PHOTO

GEOCELL APPLICATION

SOIL REINFORCEMENT Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement. ♦50% reduction in roadbed thickness ♦70+ years service life ♦10 times the bearing capacity



SLOPE PROTECTION Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection. ♦Environmentally friendly ♦Green vegetation planted on it ♦Excellent drainage with a perforated surface





CHANNEL PROTECTION Geomax®(Hdpe Geocell) delivers stability and protection of channels exposed to erosive conditions ranging from low to high flows, either intermittent or continuous. ♦Prevent seepage and reduce water loss ♦Resistance to higher velocity and continuous flows. ♦Less costly, smaller aggregate (up to 10 times) for the same protection.





RETAINING WALLS Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff. ♦Naturally-Vegetated, Green Retaining Wall Systems ♦25-30% installation faster than MSE block walls. ♦No heavy equipment required.

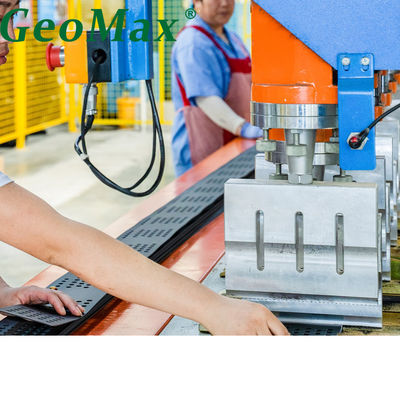

GEOMAX PRODUCTION LINE

INVENTION AND TESTINGS



PRODUCT AREAS

FACTORY CERTIFICATE

PHOTO OF THE EXHIBITION



FAQ:

Q:Where is it manufactured ?
A: GeoMax geocell is manufactured in Anhui Province China



Q: Can you send samples to me ?

A: Of course, we will send a free sample to you within 3 days.

Q: What if my project dimensions are different than the Geocell panels ?

A:We can custom-design Geocell foundation grids to meet your project's specific needs. Drainage pipes, trees, and other obstacles won't hinder the installation of a solid Geocell base. Unlike concrete and steel, you can fit flexible Geocell panels around these objects.
