Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid

Customer Reviews
HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid
Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid

Large Image :  Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid

Product Details:
Place of Origin: ANHUI Province CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM50-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 40000㎡ per day

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid

Description
Geocell Material: High Density Polyethylene Geocell Thickness: 1.2-1.5mm
Geocell Standard: ASTM Or GB Standard Geocell Height: 50mm
Type: 50-445 Geocell Surface: Textured&Perforated
Welded Space: 445mm Geocell Density: 0.950 G/cm3
Carbon Black: 1.5% Peeling Strength: 10-14.2kN/m
Geocell Tensile Strength: 25kN/m Our Minimum Quantity: 3000m2

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid



 HDPE GEOCELL PRODUCT INTRODUCTION



With over 20 years of experience in cell-based restraint systems, GeoMax® is a leading innovator in geotechnical engineering. We have more than 100 patents on our technology and provide best-in-class solutions for ground stabilization, erosion control, and soil reinforcement.



Our geocells are designed to be durable and offer superior strength, flexibility, and long-term performance to meet the demands of modern infrastructure and environmental challenges. All of our products are ISO- and CE-certified and are manufactured according to strict quality standards to ensure reliability and global compliance.



GeoMax® offers fully customized solutions to meet your project's specific needs. Our commitment to engineering excellence ensures our customers' success. We are dedicated to building smarter, stronger, and more sustainable foundation systems worldwide.



Our innovative system provides valuable engineering solutions for a wide range of infrastructure applications, including roads, highways, railroads, landscaping, landfills, parking lots, and pipelines. It saves significant time and labor while reducing overall project costs, minimizing environmental impact, and simplifying installation.

GEOMAX SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

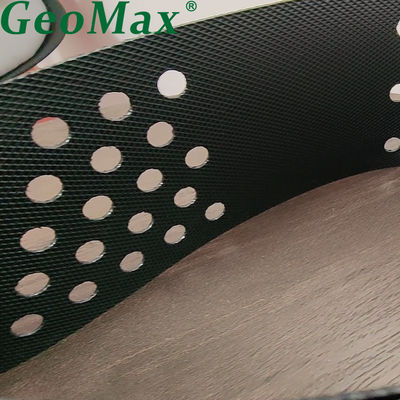

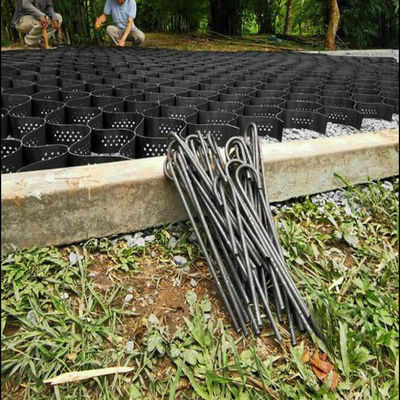

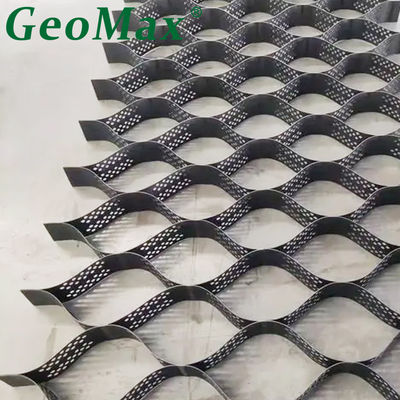

GEOMAX DETAILED PHOTOS

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 0 Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 1

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 2 Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 3

GEOCELL APPLICATIONS

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

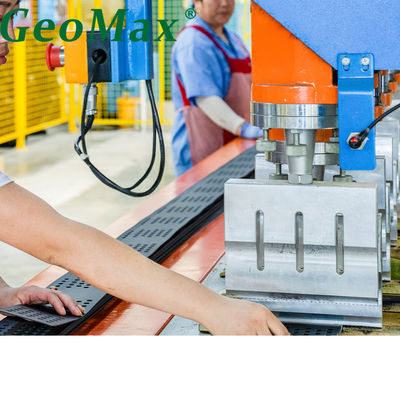

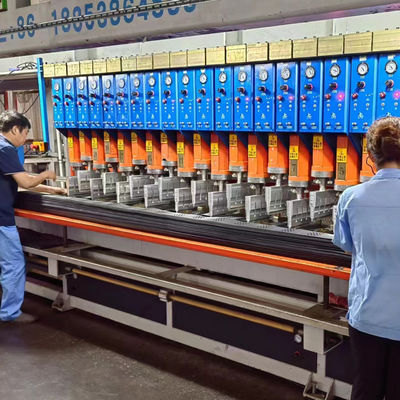

GEOCELL PRODUCTION LINE

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 8

GEOMAX INVENTION AND TESTING

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 9



GEOMAX PRODUCT AREA

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 10

GEOMAX CERTIFICATES

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 11

PHOTO OF THE EXHIBITION

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 12



FAQ:

Q: How to calculate Geocell engineering parameters?
A:
Provide:

Subgrade CBR Value.

Design Load Requirements.

Slope Angle. Suppliers/engineers can perform FEA (Finite Element Analysis).

Q: How to prevent infill loss?
A:
Top Layer Geotextile: Prevents washout.

    Use Cohesive Soil-Crushed Stone Mix.



Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.



Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements
.


Q: Will Geocell deform in low or high temperatures?
A: HDPE has a temperature resistance range of -70°C to +110°C, maintaining structural stability in extreme temperatures. It is suitable for cold regions or high-temperature industrial scenarios.

Q: Where can Geocells be used?
A:
Roads/Railways: Load distribution over weak subgrades.

Slopes: Erosion control and vegetation support.

Temporary Access Roads: Rapid deployment on soft ground.

Retaining Walls: Cost-effective alternative to gabions.



Q: Are Geocells eco-friendly?
A:

  • Recyclable: HDPE can be repurposed.

  • Vegetation-Compatible: Some designs allow root penetration.

Slope Protection Geocell Made by HDPE 14.2kN/m Peeling Strength 25kN Tensile Strength Black Geogrid 13
