High Quality ASTM Standard Black Green HDPE Geocell for Mine Tailings Management OIT ESCR, 100mm Height 330mm Welded Space

Large Image : High Quality ASTM Standard Black Green HDPE Geocell for Mine Tailings Management OIT ESCR, 100mm Height 330mm Welded Space

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-330

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	41000㎡ per day

Contact Now

High Quality ASTM Standard Black Green HDPE Geocell for Mine Tailings Management OIT ESCR, 100mm Height 330mm Welded Space

Description

Material:	100% Virgin HDPE Plastic	Cell Thickness:	1.2-1.5mm
Standard:	ASTM; GB Standard	Cell Height:	100mm
Type:	GM100-330	Surface Tone:	Green; Yellow; Black
Welding Distance:	330mm	Surface:	Smooth;Textured Surface
Cell Density:	0.950 G/cm3	Seam Peel Strength:	14.2 KN/m
Tensile Strength:	25kN/m	OIT:	100Min
ESCR:	4999

High Quality ASTM Standard Black Green HDPE Geocell for Mine Tailings Management OIT ESCR, 100mm Height 330mm Welded Space

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® HDPE Geocell is an engineered cellular confinement system developed to make soil stronger, spread loads evenly, and prevent erosion across challenging terrain. It's made from high-density polyethylene, so it's great for resisting UV, chemicals, and environmental stress.

GeoMax® geocells come in smooth or textured finishes, and you can customize them in terms of height, wall thickness, and weld spacing to match your engineering needs. Each unit is made following ISO and CE-certified processes, so you can count on durability, precision, and reliable performance in tough situations.

With over 20 years of experience and more than 100 patented innovations, GeoMax® supports global customers in road and railway construction, slope protection, mining infrastructure, and green engineering, delivering proven and economical solutions for ground stabilization challenges.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

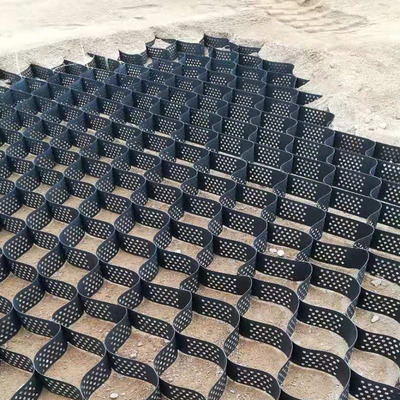

DETAILED PHOTOS

High Quality ASTM Standard Black Green HDPE Geocell for Mine Tailings Management OIT ESCR, 100mm Height 330mm Welded Space 0

APPLICATIONS

SOIL REINFORCEMENT

Geomax® (HDPE Geocell) is the solution for stabilizing or reinforcing soil. It can increase the pavement's load capacity and prevent cracking.

SLOPE PROTECTION

Geomax® (HDPE Geocell) is the clear choice for slope protection or erosion control. It's great for drainage and protecting your slope.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) provides stability and protection for channels.
It's exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

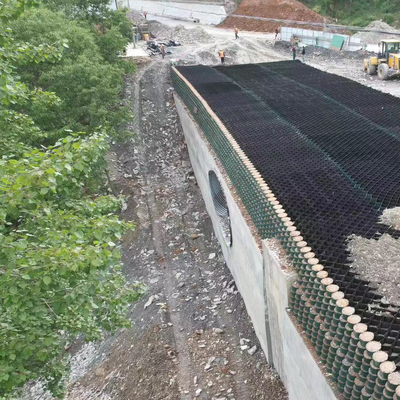

RETAINING WALLS

Geomax® (Hdpe Geocell) is really permeable and works well as a planting pot, letting rainwater seep in and keeping runoff under control.

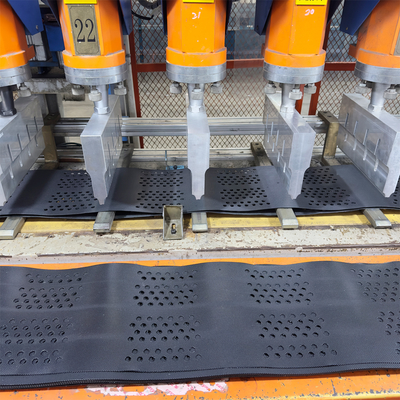

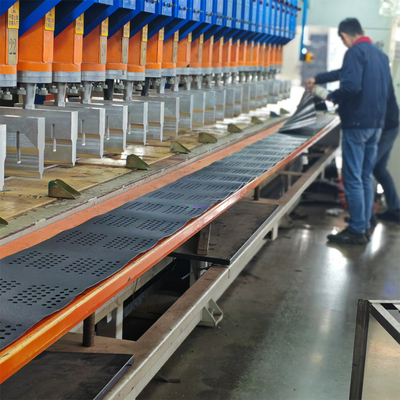

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.

Q: In which specific projects is Geocell suitable?
A: Widely used in road subbases, parking lots, riverbank revetments, golf courses, airport runway foundations, mine storage areas, etc.—especially for projects requiring fast construction or high environmental standards.

Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
