150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard

Large Image : 150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-330

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	30000㎡ per day

Contact Now

150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard

Description

Material:	HDPE Plastic	Cell Thickness:	1.5mm
Standard:	ASTM; GB Standard	Cell Height:	150mm
Cell Size:	GM150-330	Cell Color:	Green; Yellow And Black
Welding Distance:	330mm	Surface:	Smooth;Textured Surface
Cell Density:	0.950 G/cm3	Seam Peel Strength:	14.2 KN/m
Seam Tensile Strength:	25 KN/m	OIT:	100min
ESCR:	4999

150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard

HDPE GEOCELL PRODUCT INTRODUCTION

The GeoMax® HDPE Geocell is a resilient and high-performance cellular confinement system utilized for soil reinforcement, erosion control, and load support in a diverse array of ground engineering projects. The material under consideration is composed of high-density polyethylene (HDPE), a plastic that is renowned for its resilience to ultraviolet (UV) radiation, chemical exposure, and mechanical stress. This attribute renders it well-suited for a range of applications, including both temporary and permanent uses.

All products are subject to rigorous quality control measures and are certified in accordance with ISO and CE standards. This ensures consistency and durability in harsh field conditions.

GeoMax® solutions have been utilized in a variety of applications, including road construction, slope protection, mining haul roads, railways, retaining walls, green infrastructure, and landfill containment. These solutions have been shown to assist in reducing material costs and enhancing construction efficiency, particularly in contexts involving weak or unstable soils.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

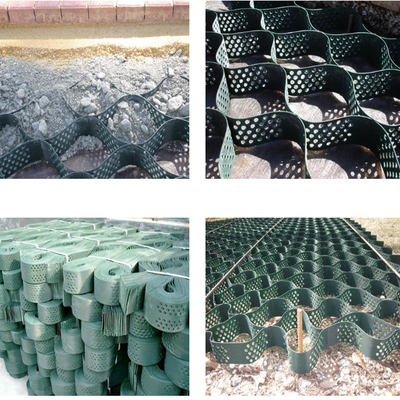

DETAILED PHOTOS

150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard 0

150mm Height 330mm Welded Space Black & Green HDPE Geocell for Railway Subgrade Stabilization - OIT ESCR, High Quality ASTM Standard 2

APPLICATIONS

SOIL STABILIZATION

Geomax® (HDPE Geocell) has been identified as a solution for the stabilization or reinforcement of soil. This approach has been demonstrated to enhance the load-bearing capacity of pavements, thereby mitigating the risk of cracking.

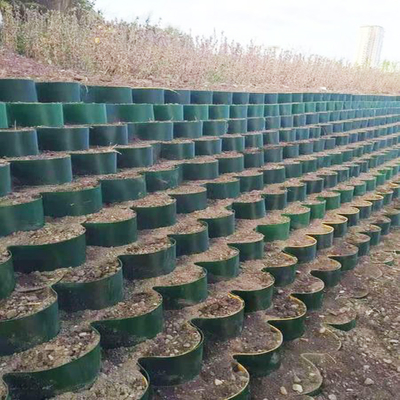

SLOPE PROTECTION

Geomax® (Hdpe Geocell) is the optimal solution for slope protection or erosion control. The product exhibits both effective drainage capabilities and the capacity to provide slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) has been demonstrated to provide stability and protection for channels.
The subject was exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax® (HDPE Geocell) is characterized by its high degree of permeability, thereby serving as an effective medium for a multitude of planting pots. This feature facilitates the infiltration of rainwater, thereby minimizing runoff.

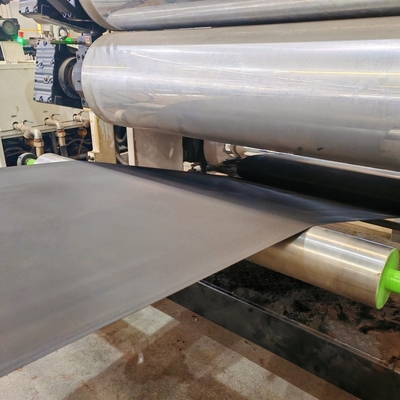

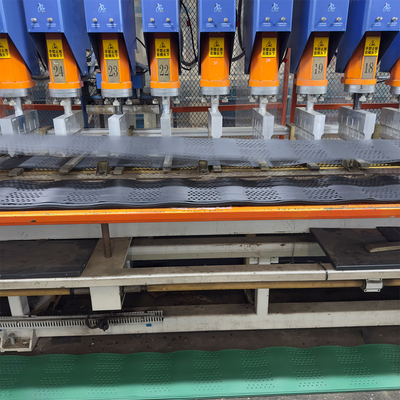

PRODUCTION LINE

INVENTION AND TESTING

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: How does Geocell perform in terms of UV resistance?
A: The HDPE material is added with UV-resistant additives, effectively preventing material aging caused by long-term sunlight. Its service life is not affected by outdoor lighting.

Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
