OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality

Large Image : OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE And ISO9001-2015
Model Number:	GM100-356

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	35000㎡ per day

Contact Now

OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality

Description

Material:	100% HDPE Plastic	Cell Thickness:	1.2-1.5mm
Standard:	ASTM/ GB Standard	Cell Height:	100mm
Cell Size:	GM100-356	Cell Color:	Yellow; Green Or Black
Welding Distance:	356mm	Surface:	Smooth;Textured Surface
Cell Density:	0.950 G/cm3	Seam Peel Strength:	14.2 KN/m
Tensile Strength:	25kN/m	OIT:	100min
ESCR:	4999

OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality

GEOCELL PRODUCT INTRODUCTION

GeoMax® HDPE Geocell is a durable and high-strength cellular confinement system used for soil reinforcement, erosion control, and load support. It is our understanding that the material used in its manufacture is high-density polyethylene (HDPE), which has been found to exhibit excellent resistance to UV exposure, chemical corrosion, and environmental stress.

Product Advantages:

GeoMax® geocells have been observed to feature high tensile strength, excellent resistance to deformation, and long-term durability under dynamic and static loads. The honeycomb structure has been found to effectively confine infill material, which, in turn, has the potential to improve load distribution and reduce lateral movement. Their lightweight and compact design allows for easy transportation and quick installation, which can lead to significant reductions in construction time and labor costs. GeoMax® also utilizes ultrasonic welding technology, ensuring strong and uniform seams for enhanced structural integrity in demanding conditions.

GeoMax® geocells have been certified to ISO and CE standards, and they find wide application in road construction, slope protection, mining, and environmental engineering.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

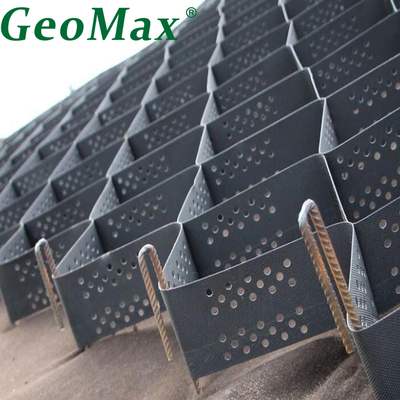

DETAILED PHOTOS

OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality 0

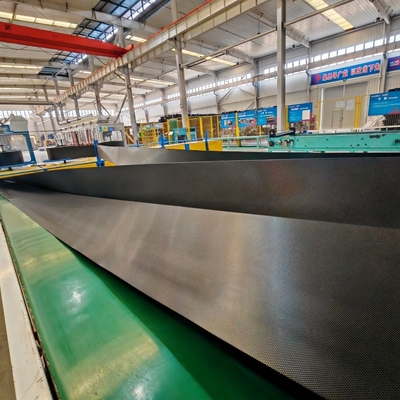

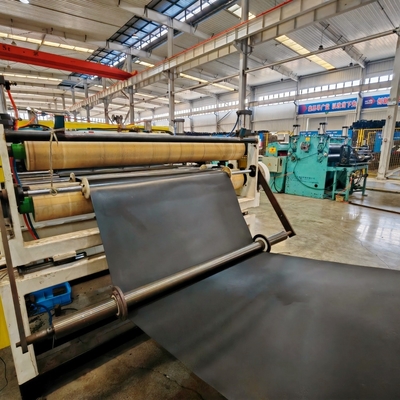

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

OIT ESCR Featured Black And Green HDPE Geocell For Coastal Erosion Control 100mm Height 356mm Welded Space ASTM Standard Quality 6

FAQ:

Q: What is Geocell made from?
A: GeoMax® Geocells are made from high-density polyethylene (HDPE), offering excellent strength and durability. Ultrasonic welding ensures structural integrity, while perforations allow for natural drainage and soil stability.

Q: What if my project dimensions don’t match the Geocell panels?
A: No worries! We offer custom-designed Geocell grids tailored to your project’s specifications. The flexible design allows them to fit around obstacles such as drainage pipes, trees, and structures—something rigid materials like concrete or steel cannot accommodate.

Q: What kind of testing has been done on GeoMax Geocell? Can I access the product specifications?
A: Our team would be happy to discuss the product testing and specifications with you. We offer a free commercial evaluation to assess your project’s needs and provide tailored solutions. You can schedule one, and we will get back to you within a few hours.

Q: Where is GeoMax Geocell produced?
A: GeoMax Geocell is produced in Anhui, China.

Q: Do you offer customized sizes?
A: Yes, we manufacture Geocell panels in custom sizes to meet your specific project requirements.

Q: Does Geocell comply with environmental standards in municipal projects?
A: HDPE is recyclable and free of harmful substances, conforming to EU EN13242 and US ASTM D618 standards—suitable for eco-friendly municipal projects.

Q: What standards do you follow?
A: We conduct extensive testing to meet ASTM and GB standards. We’re happy to share product specifications or provide a free commercial evaluation tailored to your project’s needs.
