150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction

Name: 150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction
Brand: Anhui Hechuang New Synthetic Materials Co., Ltd
SKU: GM150-712
Price: 9.50 USD
Availability: InStock

All Products

HDPE Geocell
(294)

Slope Protection Geocell
(85)

Geocell For Road Construction
(85)

Erosion Control Geocell
(27)

Geocell Ground Grid
(6)

Geo Cell Grid
(7)

Geobin Compost Bin
(10)

HDPE Liner Sheet
(11)

Soil Reinforcement Geogrid
(20)

HDPE Geomembrane Sheet
(11)

Geotextile Fabric
(18)

Certification

Customer Reviews

HCNS team is trustworthy, I have a project that needs Geocells, they offer me the right Geocell type and send free samples to us, after checking their samples, we buy and do our project very perfectly. Once we have a project for Geocell in the future, we will definitely cooperate with you again.

—— Tony

I'm Online Chat Now

150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction

Large Image : 150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE; ISO9001-2015
Model Number:	GM150-712

Payment & Shipping Terms:

Minimum Order Quantity:	3500 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction

Description

Material:	Virgin HDPE Plastic	Geocell Thickness:	1.0-1.5mm
HDPE Geocell Standard:	ASTM ; GB Standard	Cell Height:	100mm
Cell Size:	712mm	Surface Tone:	Green; Yellow; Black
Welding Distance:	712mm	Surface:	Smooth & Textured; Perforated
Density:	0.950 G/cm3	OIT:	100min
ESCR:	4999 Hours
Highlight:	black HDPE geocell for erosion control , 150mm height geocell for spillway outfall , 25kN tensile strength geocell for driveway

150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction

GEOCELL PRODUCT INTRODUCTION

GeoMax® is a leading company in the field of geotechnical engineering, with a wealth of expertise in cellular confinement systems that has spanned over two decades. The company's portfolio comprises over 100 patented technologies, which are designed to deliver advanced solutions in the areas of ground stabilisation, erosion control and soil reinforcement.

Geocells are engineered to exhibit unparalleled strength, flexibility, and long-term performance. In this way, they are able to meet the demands of modern infrastructure and environmental challenges. All products are ISO and CE certified, and manufactured under rigorous quality standards to ensure global compliance and reliability.

GeoMax® delivers fully customized solutions that are tailored to project-specific needs. The organisation prides itself on its commitment to engineering excellence and the pursuit of client success. The company's core business is the construction of ground systems that are smarter, stronger, and more sustainable.

HDPE GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

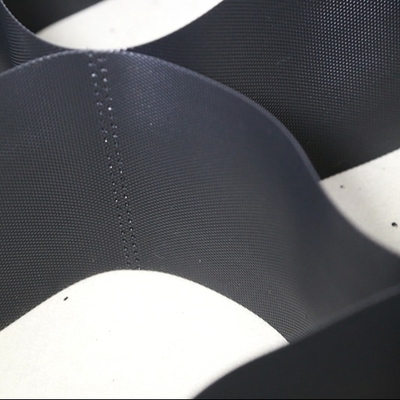

DETAILED PHOTOS

150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction 0

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax® (Hdpe Geocell) is an excellent option for slope protection or erosion control. It has been observed to have both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax® (HDPE Geocell) has been found to contribute to stability and protection of channels.
It is exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax® (HDPE Geocell) has been found to be highly permeable, which could be beneficial as it allows rainwater to infiltrate the ground. It has also been observed to act as a number of planting pots, with the potential to help minimize runoff.

PRODUCTION LINE

PRODUCT AREA

CERTIFICATES

PHOTO OF THE EXHIBITION

150mm Height Black HDPE Geocell for Spillway Outfall Erosion Control 25kN Tensile Strength Driveway Construction 9

FAQ:
Q: How is the ultraviolet (UV) resistance of Geocell ensured?

A: Raw materials containing UV - resistant additives are used. For example, HDPE is added with specific UV stabilizers, which can effectively resist the degradation of materials by ultraviolet rays, extend the service life of the product in outdoor environments, and ensure long - term stable performance.

Q: How does Geocell perform in different temperature environments?

A: HDPE - based Geocell has a wide temperature range of application. Generally, it can maintain structural stability and material performance within the temperature range of - 70℃ to + 110℃, and is suitable for permafrost engineering in cold regions and industrial site construction in high - temperature environments, etc.

Q: What is the drainage performance of Geocell?

A: Geocell can form a good free drainage system. On the one hand, its structure itself has a certain porosity, allowing water to permeate between cells. On the other hand, when filled with permeable materials (such as sand and gravel), the drainage effect is better, which can effectively prevent water accumulation and reduce the risk of soil instability caused by water pressure.
