Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality

Large Image : Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-712

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality

Description

Material:	100% High Density Polyethylene	Geocell Thickness:	1.65mm
Geocell Standard:	ASTM; GB Standard	Geocell Height:	150mm
Geocell Surface:	Textured&Non Perforated	Welded Distance:	712mm
HDPE Geocell Density:	0.950 G/cm3	Carbon Black:	1.5%
Peeling Strength:	12-14.2kN/m	HDPE Geocell Our Minimum Quantity:	3000m2
Geocell ESCR:	4999hours	Geocell HPOIT:	400min
Elongation Break:	9%-15%
Highlight:	wide-weld HDPE geocell , 712mm spacing geocell , high strength HDPE geocell

Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality

GEOMAX SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

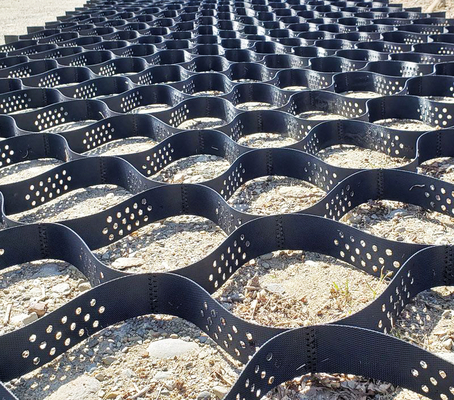

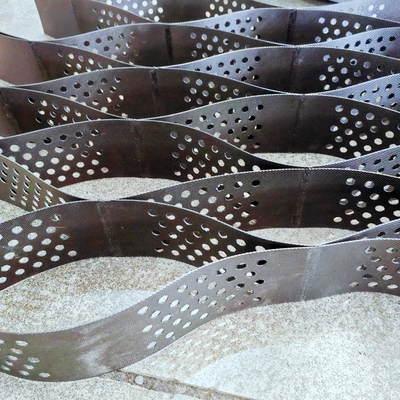

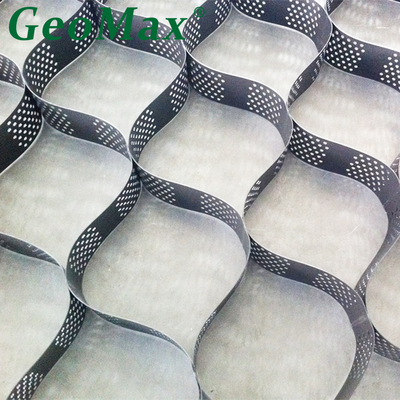

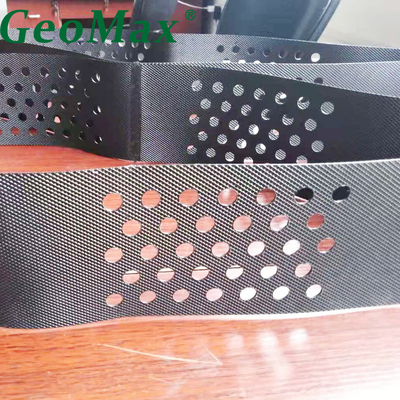

HDPE GEOCELL DETAILED PHOTOS

Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality 0

Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality 2

HDPE GEOCELL APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

GEOCELL PRODUCTION LINE

GEOMAX INVENTION AND TESTING

GEOMAX PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

Wide-Weld 712mm Spacing HDPE Geocell for Maximized Infill Efficiency Cost Savings High Strength High Quality 12

FAQ:

Q: Can Geocell be used for river and canal bank protection?

A: Yes, Geocell is effective for river and canal bank protection. It resists water erosion, stabilizes the bank, and can be combined with vegetation to create a natural and ecological bank protection system.

Q: Is Geocell applicable to parking lot construction?

A: Definitely. Using Geocell in parking lot construction can reduce the thickness of the pavement structure, lower costs, and improve the bearing capacity to handle vehicle loads.

Q: Can Geocell be used in landfill engineering?

A: Yes, Geocell can be used in landfill engineering to reinforce the landfill cover and base, prevent soil deformation, and help control the migration of leachate.

Q: What is the application of Geocell in mining areas?

A: In mining areas, Geocell can be used for reinforcing haul roads, stabilizing mine dumps, and reclaiming land, helping to reduce environmental damage and improve engineering stability.

Q: Can Geocell be used for ecological restoration projects?

A: Yes, Geocell is widely used in ecological restoration. It can stabilize slopes, prevent soil erosion, and provide a suitable environment for vegetation growth, promoting ecological recovery.

Q: Is Geocell suitable for sports field construction?

A: Geocell can be used in sports field construction, such as for reinforcing the base of football fields or golf courses, improving drainage and stability, and ensuring a good playing surface.
