150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam

Large Image : 150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam

Product Details:

Place of Origin:	ANHUI,CHINA
Brand Name:	GeoMax
Certification:	ISO9001-2015
Model Number:	GM 150-445

Payment & Shipping Terms:

Minimum Order Quantity:	2600 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	40000㎡ per day

Contact Now

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam

Description

Geocell Material:	High Density Polyethylene	Thickness:	1.2mm-1.6mm
Geocell Standard:	ASTM Or GB Standard	HDPE Geocell Height:	200mm
Surface:	Textured& Perforated	Welded Distance:	445mm
Geocell Density:	0.950 G/cm3	Geocell Carbon Black:	1.5%
Geocell Peeling Strength:	10-14.2kN/m	Geocell Tensile Strength:	25kN/m
Geocell Our Minimum Quantity:	3600m2	Geocell ESCR:	4999 Hours
HDPE Geocell OIT:	150min	Geocell Elongation At Break:	6%-15%
Highlight:	HDPE geocell for construction roads , green HDPE geocell with weld spacing , 150mm height geocell for access roads

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam

GEOMAX INTRODUCTION

GeoMax® Geocells are strong, 3D honeycomb structures made of tough, high-density polyethylene (HDPE) sheets that are welded together using ultrasound.

It is possible to fill these cells with sand, soil or other materials from the area, which could make them a useful and affordable solution for many geotechnical projects.

This new system appears to offer good value for money. Its uses are varied, including but not limited to driveways, highways, railroads, landscaping, landfills, parking lots and pipelines. It is hoped that the system will save a lot of time and labour by reducing project costs, reducing environmental impact, and making installation easier.

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

GEOMAX DETAILED PHOTOS

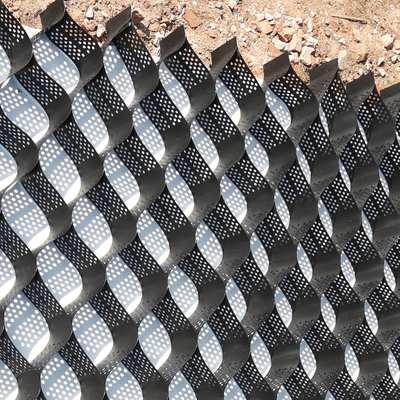

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam 0

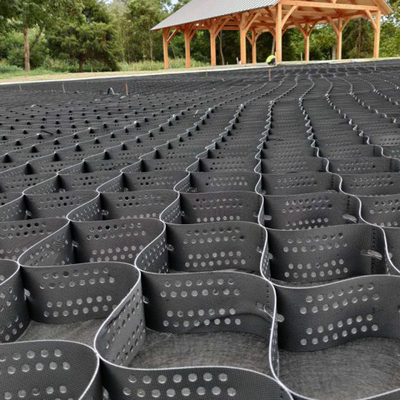

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam 1

PRODUCTION LINE

GEOCELL INVENTION AND TESTING

GEOCELL PRODUCT AREA

GEOMAX CERTIFICATES

PHOTO OF THE EXHIBITION

150mm Height Green Color HDPE Geocell with 445mm Weld Spacing for Construction Access Roads In Vietnam 6

FAQ:

Q: What are the requirements for Geocell when used for railway subgrade reinforcement to meet the strict settlement standards of railways?

A: Railway subgrades require long - term settlement ≤ 15mm and differential settlement ≤ 5mm/m. Therefore, Geocell used should have a tensile strength ≥ 20MPa, a creep rate ≤ 3% under 20% of the ultimate load, and a cell height of 150 - 200mm. The filling material should be graded gravel with a uniformity coefficient of 5 - 15 and a curvature coefficient of 1 - 3, compacted to a relative density of ≥ 90%. Additionally, the Geocell should be fixed with galvanized steel anchors (length ≥ 500mm) at a spacing of 300mm along the edges and joints.

Q: In railway bridge - subgrade transition sections, how to use Geocell to reduce settlement differences between the bridge and the subgrade?

A: The transition section should adopt a stepped Geocell layout. Within 5m from the bridge abutment, use Geocell with a cell height of 200mm; from 5m to 10m, use 150mm cell height; and beyond 10m, use 100mm cell height. The Geocell should be connected to the bridge abutment through pre - embedded steel plates (thickness ≥ 8mm), and the filling material should be cement - stabilized gravel (cement content 3% - 5%) to improve the stiffness of the transition section. The compaction should be carried out in layers (layer thickness ≤ 200mm) with a vibratory roller, and the compaction degree should reach ≥ 96%.
