200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam
200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam

Large Image :  200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM200-356
Payment & Shipping Terms:
Minimum Order Quantity: 2000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam

Description
Geocell Material: 100% High Density Polyethylene Cell Thickness: 1.1-1.5mm
Surface: Smooth Textured Surface Perforated Tensile Strength: 25kN/m
Quality Standard: ASTM; GB Standard;ISO-9001-2015 Seam Peel Strength: 14.2 KN/m
Height: 200mm Color: Black
Welding Distance: 356mm Density: 0.950 G/cm3
OIT: 100Min ESCR: 5000Hours

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance three-dimensional honeycomb structure made from high-density polyethylene (HDPE) sheets joined together via ultrasonic welding, forming a sturdy grid framework with excellent structural stability.

The cellular units of the system can be filled with sand, soil, or locally available materials. This design makes it a versatile and cost-effective solution suitable for a wide range of geotechnical applications. In fact, it is widely regarded as one of the most efficient systems for addressing various geotechnical challenges, delivering reliable performance across different project scenarios.

This advanced system offers high-value solutions for multiple types of infrastructure projects, including driveways, highways, railways, landscape development, landfills, parking lots, and more. In these typical application scenarios, GeoMax® Geocell fully demonstrates its advantages in enhancing load-bearing capacity and preventing soil erosion, among other benefits.

Adopting this system helps reduce overall project costs, minimize environmental impact, and improve construction workflow efficiency. These objectives—controlling expenses, reducing environmental footprint, and optimizing processes—are essential to ensuring the smooth and successful implementation of any project.

Furthermore, the system significantly saves time and labor costs. By directly lowering total project costs while simultaneously reducing adverse environmental effects, GeoMax® Geocell serves as an ideal choice for infrastructure development that is both sustainable and economical.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 0 200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 1

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 2 200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 3

APPLICATIONS

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 7

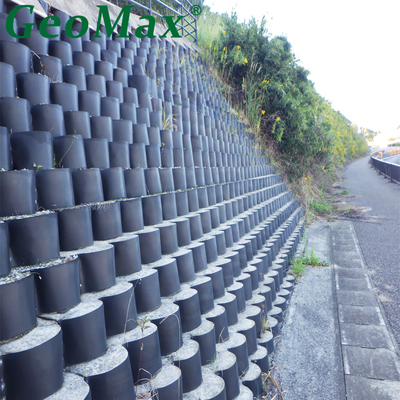

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 8

INVENTION AND TESTING

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 9



PRODUCT AREA

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 10

FAQ:

      1. Q: How durable is Geocell?
      A: Under normal circumstances, Geocell manufactured with high - quality raw materials and advanced production processes can have a service life of several decades under appropriate application scenarios and maintenance conditions. For example, in highway subgrade projects, it can serve stably for more than 20 years.
      1. Q: What are the requirements for filling materials in Geocell?
      A: The filling materials should have certain strength and gradation. For example, graded sand, gravel, crushed stones, etc. can be used for road subgrades; for ecological slope protection, soil suitable for vegetation growth mixed with a certain proportion of organic fertilizers and water - retaining agents, etc. can be used. The particle size should generally not be too large or too small to ensure the filling effect and the synergistic effect with the Geocell structure.
      1. Q: What is the design principle of the honeycomb structure of Geocell?
      A: The honeycomb structure is based on mechanical principles. By evenly distributing the pressure to each cell and utilizing the strength of the material itself and the mutual support between cells, a stable bearing system is formed. This structure can effectively improve the utilization efficiency of materials, achieving a high...

200mm Black HDPE Welded Geocell for Gravity Retaining Wall Construction With ESCR OIT Test High Quality In Vietnam 11
