250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength
250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength

Large Image :  250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM250-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation

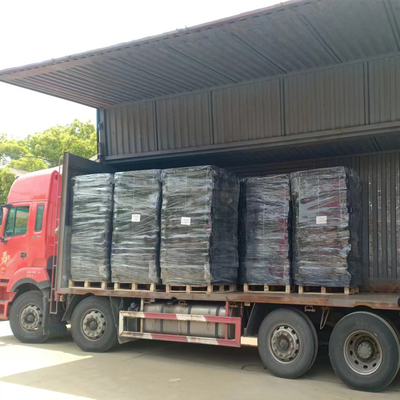

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength

Description
Material: 100% High Density Polyethylene Thickness: 1.5mm
Surface: Smooth Textured Surface Perforated Tensile Strength: 25kN/m
Quality Standard: ASTM; GB Standard;ISO-9001-2015 Seam Peel Strength: 14.2 KN/m
Height: 250mm Color: Black
Weld Space: 445mm Density: 0.950 G/cm3
OIT: 100Min

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an advanced three-dimensional cellular confinement system constructed from ultrasonically welded high-density polyethylene (HDPE) sheets. This manufacturing process creates a robust honeycomb matrix renowned for its exceptional structural integrity.

The system's interconnected cells are designed for infill with various materials such as sand, soil, or locally sourced aggregates. This innovative engineering approach positions GeoMax® Geocell as a highly adaptable and economical choice for diverse geotechnical applications. Industry experts consistently recognize it as among the most effective solutions for geotechnical stabilization, demonstrating consistent performance across varying project conditions.

As a state-of-the-art technology, it delivers enhanced value across infrastructure sectors including roadway construction, railway embankments, landscape architecture, waste containment facilities, and parking areas. Within these applications, the system excels in providing superior load distribution and erosion control capabilities.

The implementation of GeoMax® Geocell contributes to substantial project advantages through cost reduction, minimized ecological disruption, and streamlined construction operations. These core benefits—financial efficiency, environmental responsibility, and process optimization—are critical components for successful project execution.

Notably, the system generates remarkable savings in both time and labor resources. Through its dual capacity to decrease overall project expenditures while mitigating environmental impact, GeoMax® Geocell represents an optimal selection for sustainable and cost-conscious infrastructure development.

GEOCELL SPECIFICATIONS

Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 0 250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 1

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 2 250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 3

APPLICATIONS

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 8

INVENTION AND TESTING

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 9



PRODUCT AREA

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 10

250mm Extra Heavy Black HDPE Welded Geocell for Port Container Yard Pavement 14.2kN/m 25kN/m Strength 11
