150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand

Large Image : 150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-330

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand

Description

Material:	100% High Density Polyethylene	Thickness:	1.5mm
Surface:	Smooth Textured Surface Perforated	Tensile Strength:	25kN/m
Quality Standard:	ASTM; GB Standard;ISO-9001-2015	Seam Peel Strength:	14.2 KN/m;10kN/m
Height:	150mm	Color:	Black
Weld Space:	330mm	Density:	0.950 G/cm3

150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-strength, three-dimensional cellular confinement system made from ultrasonically welded HDPE. Its honeycomb structure delivers exceptional stability and is designed to be filled with sand, soil, or local aggregates.

This versatile solution provides superior load distribution and erosion control for roads, railways, landscapes, and more. By choosing GeoMax® Geocell, you significantly cut costs, accelerate construction, and minimize environmental impact—achieving durable, sustainable, and economical infrastructure

GEOCELL SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

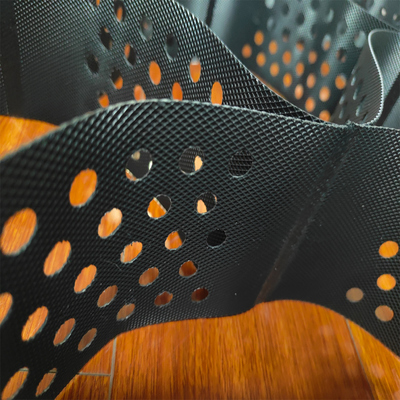

150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand 0

150mm HDPE Welded Geocell 14.2kN/m Strength With Vegetation Slots For Green Slope Solutions In Thailand 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

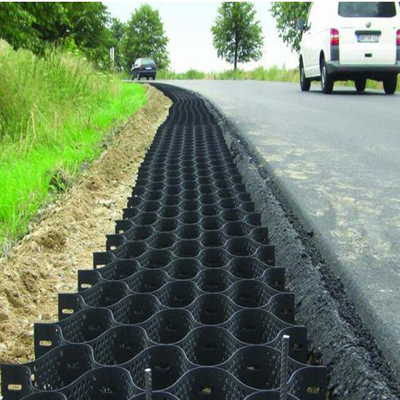

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

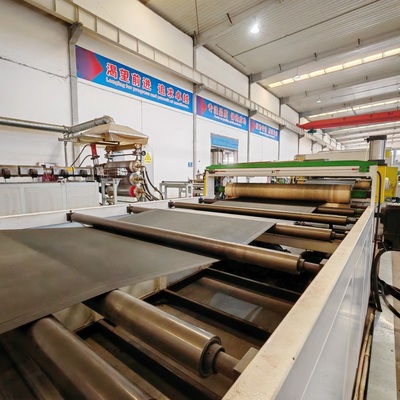

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

Q: What material is GeoMax Geocell made of?

A: GeoMax Geocell is crafted from thick high-density polyethylene (HDPE)—a material as strong as concrete—with ultrasonic welding at intervals for maximum strength, plus perforations for natural drainage.

Q: Where is GeoMax Geocell manufactured?

A: all GeoMax Geocell products are manufactured in China.

Q: What is the core structure of GeoMax Geocell?

A: It features a three-dimensional honeycomb structure: HDPE sheets are ultrasonically welded to form interconnected panels, which expand during installation to create a flexible, load-bearing framework.
