HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths

Large Image : HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM254-75

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	75mm	Color:	Black;Yellow;Green
Welding Distance:	254mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an innovative geotechnical reinforcement system engineered from high-density polyethylene (HDPE) strips, precision-welded into a robust three-dimensional cellular matrix. This design enhances tensile strength, shear resistance, and load distribution, providing dependable stability even under the most demanding soil and loading conditions.

Key Technical Advantages:

Outstanding tensile and flexural strength for superior ground support
Excellent resistance to UV radiation, chemical corrosion, and biological degradation
Compatible with a wide range of infill materials such as soil, sand, and recycled aggregates
Proven durability and performance in heavy-load and high-stress environments

Main Engineering Applications:

Road and railway subgrade reinforcement
Landfill capping and containment structures
Slope stabilization and erosion prevention projects
Load support for parking lots and building foundations
Bedding, protection, and stabilization for pipelines and utilities

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

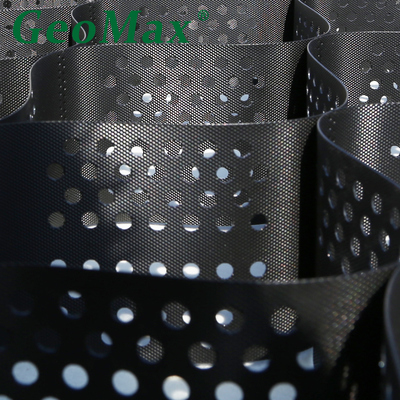

DETAILED PHOTOS

HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths 0

HDPE Geocell GM254-75mm Soil Stabilization Grid for Horse Trails and Farm Paths 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

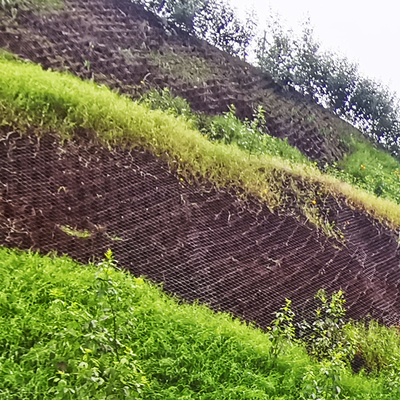

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

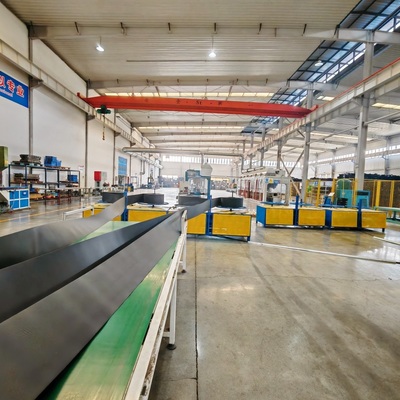

PRODUCTION LINE

INVENTION AND TESTING

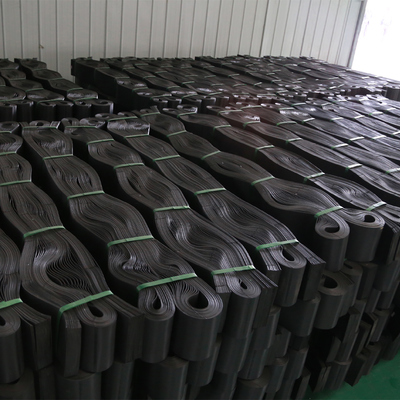

PRODUCT AREA

FAQ:

1. What is a GeoMax® Geocell?
GeoMax® Geocell is a high-performance, three-dimensional cellular confinement system made from reinforced HDPE or Nano-Polymer sheets. When expanded, it forms a flexible, yet rigid, mattress-like structure that confines and stabilizes infill materials like soil, sand, gravel, or concrete.

2. How does a geocell work?
It works through the principle of lateral confinement. The cellular walls prevent the infill material from moving laterally under load, creating a stiffened composite layer that distributes loads over a wider area, significantly increasing the bearing capacity of the underlying soil.

3. What material is the GeoMax® Geocell made from?
Our primary materials are:

Reinforced HDPE (High-Density Polyethylene): For excellent durability and chemical resistance.
Nano-Composite: A premium grade with nano-particle enhancements for superior tensile strength, stiffness, and resistance to impact and stress cracking.
