HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas

Large Image : HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM254-100

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	254mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance ground reinforcement system crafted from high-density polyethylene (HDPE) strips, which are ultrasonically fused into a sturdy three-dimensional cellular network. This engineered structure delivers exceptional load-bearing capacity, enhanced tensile and flexural strength, and efficient distribution of forces, providing reliable stability across demanding geotechnical conditions.

Technical Highlights:

Superior strength and flexibility for robust soil support
Durable against UV exposure, chemical attack, and biological degradation
Compatible with a wide variety of infill materials, including soil, sand, and recycled aggregates
Proven performance under heavy loads and high-stress conditions

Applications:

Reinforcement of road and railway subgrades
Landfill containment and capping
Erosion control and slope stabilization
Load-bearing foundations for parking areas and buildings
Pipeline bedding, protection, and stabilization

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

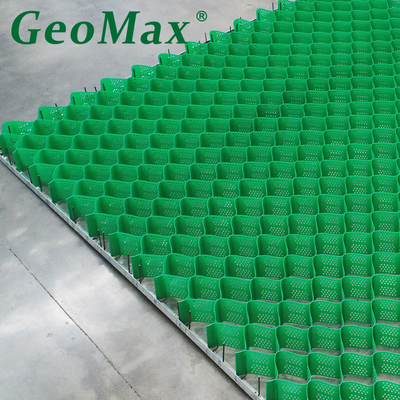

DETAILED PHOTOS

HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas 0

HDPE Geocell GM254-100mm Base Reinforcement for ATV Tracks and Equestrian Arenas 2

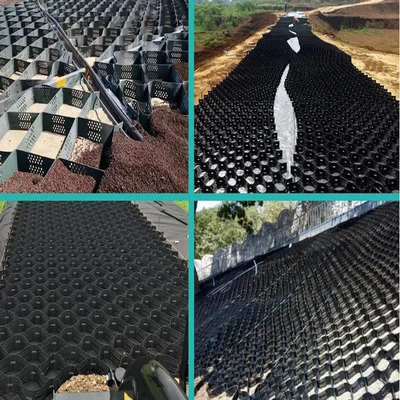

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

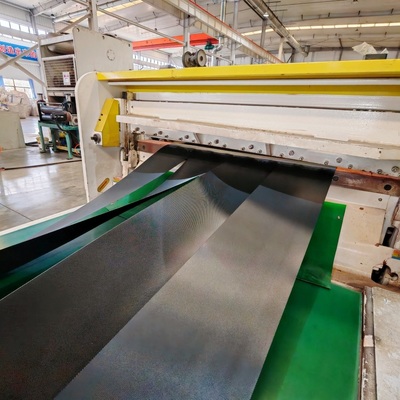

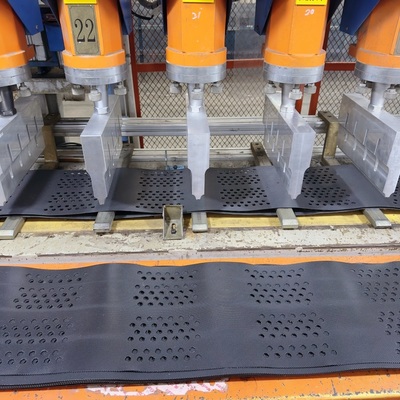

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

4. What are the benefits of using HDPE?
HDPE offers exceptional resistance to ultraviolet radiation, chemical and biological degradation, and environmental stress cracking. This ensures a long design life, often exceeding 50 years in standard civil engineering applications.

5. What does "Nano-Composite" mean, and what are its advantages?
Nano-Composite refers to our HDPE material infused with specialized nano-particles. This creates a geocell with:

Higher tensile modulus and strength.
Enhanced resistance to puncture and impact.
Superior long-term creep performance under sustained loads.
It is ideal for extreme-duty applications.

6. What is the difference between a geocell and a geogrid?
Geocells provide three-dimensional (3D) confinement, creating a stiffened platform that distributes vertical loads. Geogrids are two-dimensional (2D) and primarily provide tensile reinforcement through interlock with the soil. They are complementary technologies but serve different functions.
