HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes

Large Image : HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM330-75

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	75mm	Color:	Black;Yellow;Green
Welding Distance:	330mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a next-generation geosynthetic system designed for ground stabilization, made from high-strength HDPE strips welded into a rigid, three-dimensional honeycomb framework. Its engineered geometry ensures even load transfer, enhanced structural integrity, and superior resistance to deformation under challenging soil and traffic conditions.

Core Advantages:

Exceptional mechanical strength to support heavy loads
Long-term durability against sunlight, chemicals, and biological wear
Flexible integration with a wide range of fill materials, including soils, sands, and recycled aggregates
Demonstrated reliability in demanding infrastructure projects

Common Applications:

Strengthening subgrades in highways and railways
Containment and protection layers in landfill construction
Preventing soil erosion and stabilizing slopes
Supporting foundations and parking area structures
Bedding and protective layers for pipelines and utility corridor

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

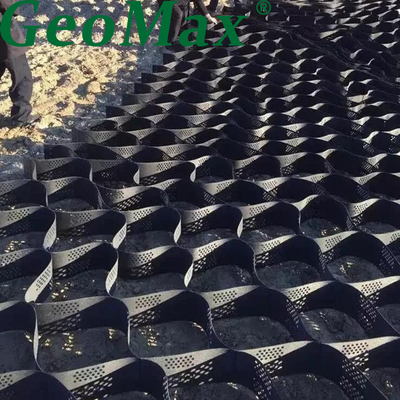

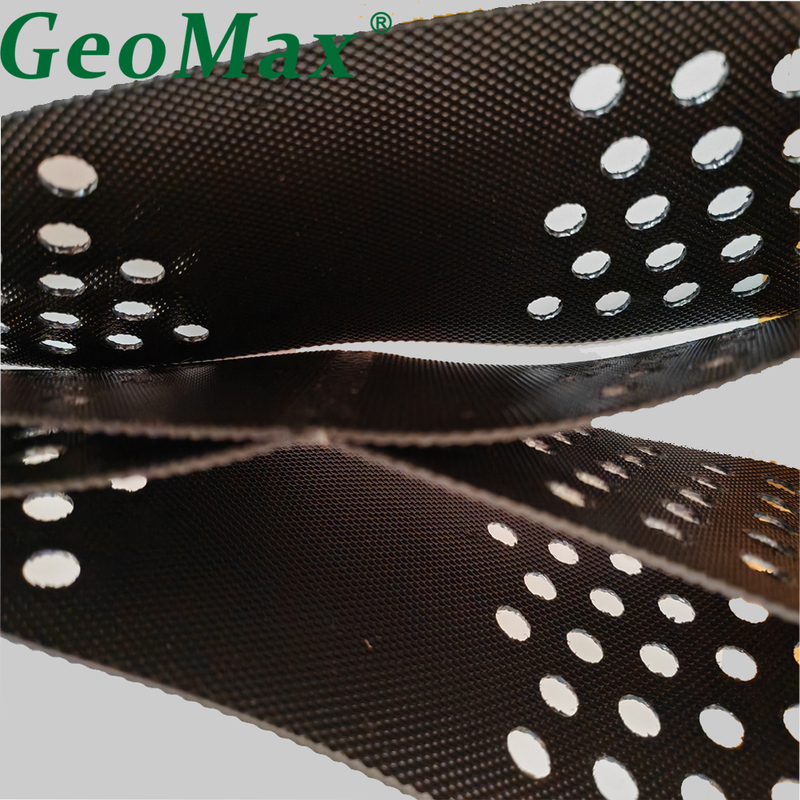

DETAILED PHOTOS

HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes 0

HDPE Geocell GM330-75mm — Driveway Gravel Stabilizer for Parking and Bike Lanes 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

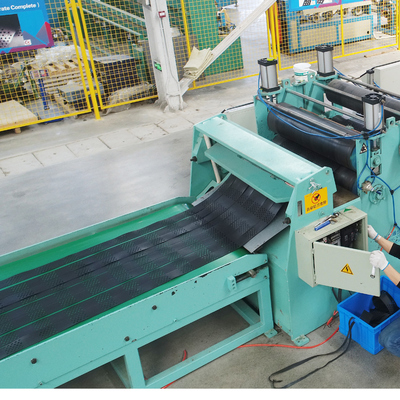

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What makes GeoMax® superior to other geocell brands?
GeoMax® combines advanced polymer technology, robust ultrasonic welding, and a rigorous quality control process. Key differentiators include our patented Nano-Composite formula, consistent cell geometry for uniform performance, and exceptional seam strength, ensuring long-term structural integrity.

Is the geocell an environmentally friendly product?
Yes. GeoMax® Geocells:

Reduce the carbon footprint by allowing the use of locally available and recycled infill materials.
Decrease the need for quarrying and transporting virgin aggregate.
Facilitate vegetative growth on slopes, promoting ecological restoration.
Are themselves 100% recyclable.

What colors are available?
Our standard color is black (for optimal UV resistance). Custom colors may be available for specific project requirements, such as green for landscaping.

How is the product packaged and shipped?
GeoMax® Geocells are compressed and folded into compact, manageable panels for easy handling. They are typically bundled on pallets and shipped via standard freight services, minimizing shipping costs and storage space.
