HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa

Large Image : HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM356-100

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	356mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell represents a premium-grade geotechnical solution designed to deliver outstanding ground stabilization and load-bearing performance. Manufactured from high-density polyethylene (HDPE) and formed into a precision-engineered three-dimensional cellular structure, it provides superior structural integrity, flexibility, and adaptability across a wide range of soil conditions.

Distinctive Advantages:

Exceptional tensile and shear performance under heavy loading conditions
Excellent resistance to UV degradation, chemical corrosion, and environmental stress
Compatible with various infill materials, including natural soils, sand, and recycled aggregates
Proven reliability in large-scale civil, geotechnical, and environmental engineering projects

Applications Worldwide:
Highways and railways | Landfill and containment systems | Slope protection and erosion control | Parking and foundation reinforcement | Pipeline bedding and stabilization

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

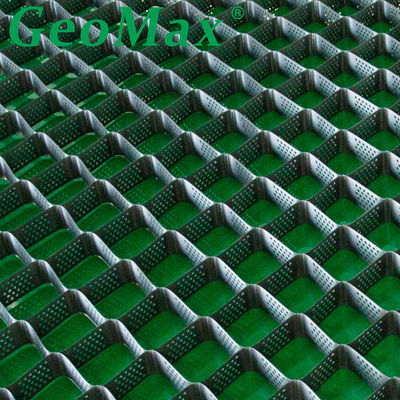

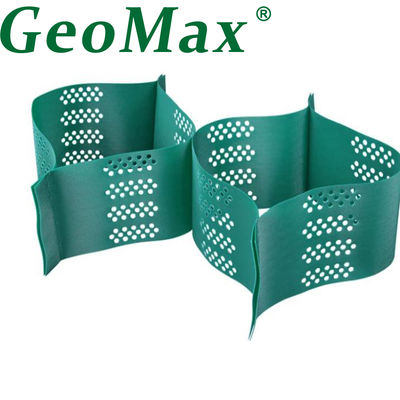

DETAILED PHOTOS

HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa 0

HDPE Geocell GM356-100mm Road Base Reinforcement for Light Vehicle Areas In South Africa 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

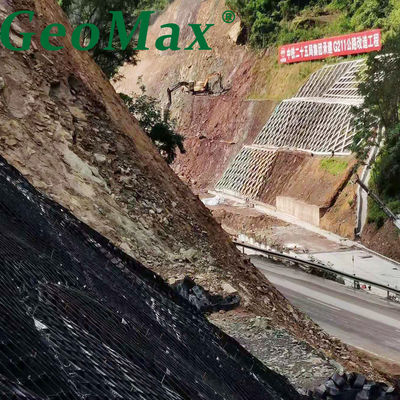

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

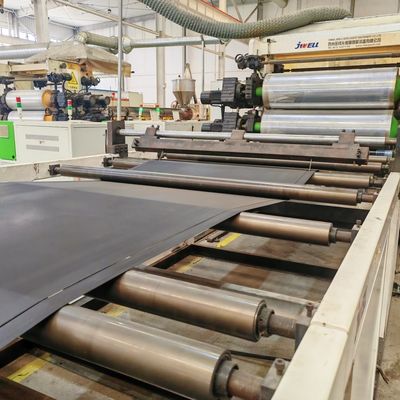

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Do you have test reports or certifications?
Yes. Our products are tested in independent laboratories and comply with international standards such as ASTM and ISO. Test reports are available upon request.

What is its long-term creep performance?
GeoMax® Geocells, especially the Nano-Composite series, are engineered for excellent long-term creep resistance, meaning they maintain their structural shape and strength under continuous load over decades.

What is the volume of a single cell?
The volume depends on the cell size and geocell height. For example, a 200mm high geocell with a 400mm x 400mm cell has a volume of 0.032 cubic meters per cell.
