HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199

Large Image : HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM445-250

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	250mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE Geocell road reinforcement , HDPE Geocell pier foundation , HDPE Geocell ASTM D-5199

HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an advanced HDPE cellular confinement system designed for reliable soil stabilization and load support. Its 3D honeycomb structure ensures superior strength, durability, and adaptability to various infill materials. Widely used in roads, railways, slopes, and foundations, GeoMax® Geocell delivers long-term performance and sustainable engineering value.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

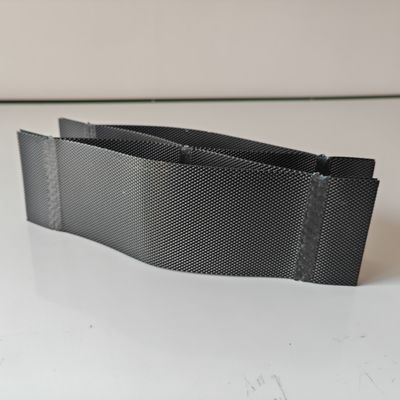

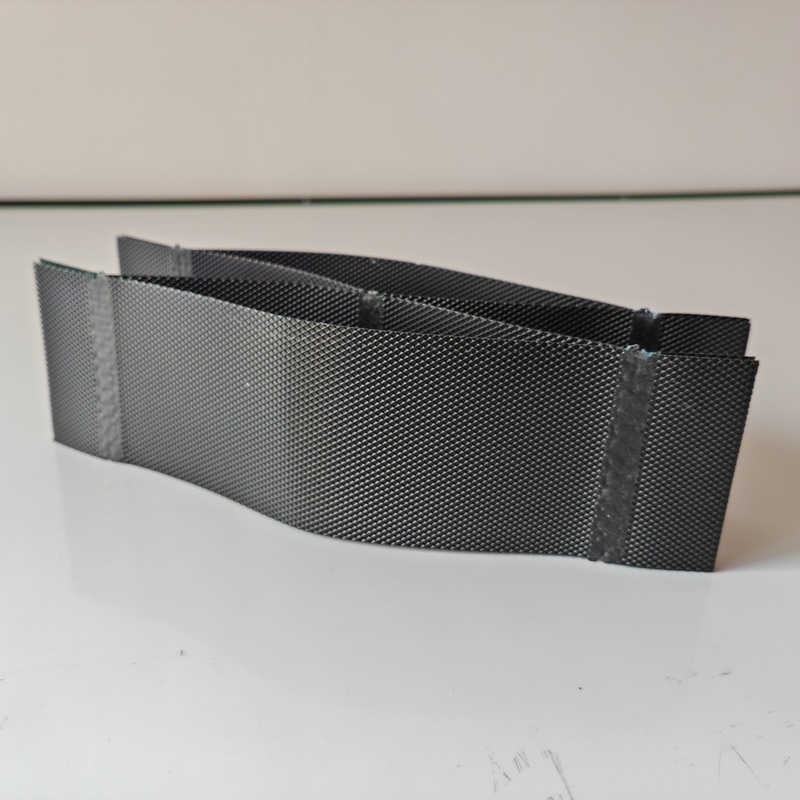

DETAILED PHOTOS

HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199 0

HDPE Geocell GM445-250mm Road and Pier Foundation Reinforcement, ASTM D-5199 2

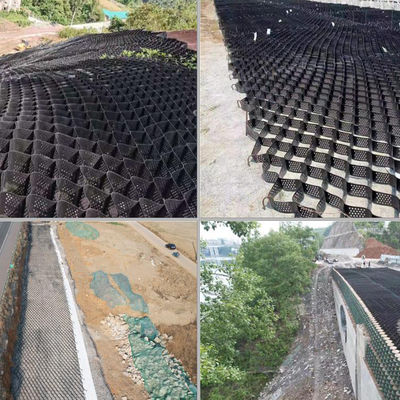

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

How can I get a price quote?
Please contact our sales team with your project details, including required specifications (height, thickness, quantity), and delivery location for a prompt and competitive quotation.

What are your payment terms?
Standard terms are 30% T/T deposit with the balance paid before shipment. Other terms can be negotiated for established customers.

What is the lead time and delivery schedule?
Standard products are typically shipped within 10-15 working days. Custom orders may require more time. We will provide a precise schedule with your order confirmation.
