HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam

Large Image : HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-660

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam

Description

Material:	100% HDPE Plastic	Thickness:	1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard	Peel Strength:	14.2 KN/m
Height:	200mm	Color:	Black;Yellow;Green
Welding Distance:	660mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell — Redefining Ground Reinforcement

Developed for modern infrastructure challenges, GeoMax® Geocell combines innovation, durability, and sustainability. Designed to strengthen soil and improve structural reliability, it offers a cost-effective and environmentally responsible solution for geotechnical engineering across varied terrains and climates.

Engineered Excellence. Proven Performance.

Manufactured from high-density polyethylene (HDPE) and precision-welded into a durable three-dimensional cellular system, GeoMax® Geocell provides superior load distribution, tensile capacity, and long-term stability. Its versatile design accommodates a wide range of infill materials — including soil, sand, and recycled aggregates — ensuring consistent performance under demanding site conditions.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

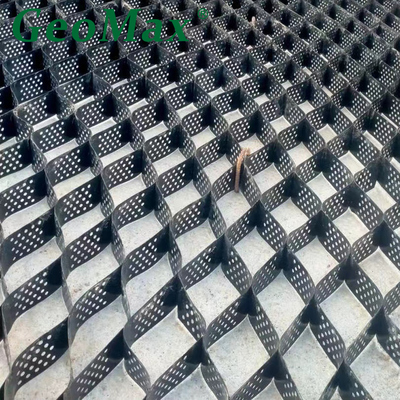

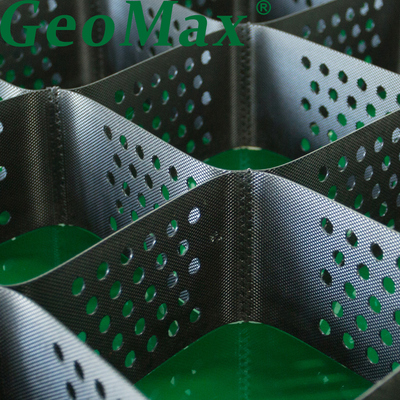

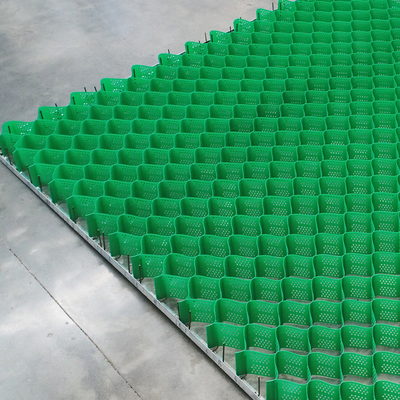

DETAILED PHOTOS

HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam 0

HDPE Geocell GM660-200mm Tree Root Protection Grid for Green Areas and Parks In Vietnam 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

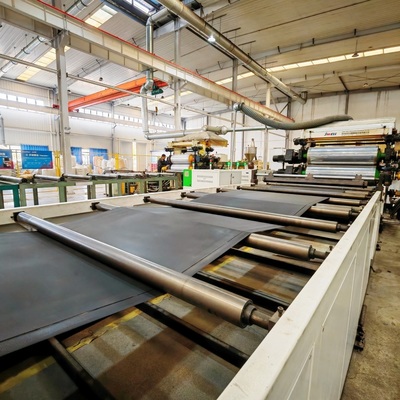

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Do you offer custom geocell manufacturing?
Yes, we can customize depth, cell size, sheet thickness, and color based on your project's specific requirements. Please inquire with our technical sales team.

Is technical support available?
Absolutely. Our team of geotechnical engineers is available to assist with design calculations, cross-section recommendations, and technical troubleshooting.

Do you have any case studies or project references?
Yes. We have an extensive portfolio of successful projects worldwide. Please visit the "Case Studies" section of our website or contact us for specific references relevant to your application.
