HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India

Large Image : HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM300-712

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	300mm	Color:	Black;Yellow;Green
Welding Distance:	712mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a high-performance geotechnical solution engineered for reliable soil stabilization and load support. Made from high-density polyethylene (HDPE) and structured into a precision 3D cellular system, it ensures exceptional strength, flexibility, and durability under demanding conditions.

Key Benefits:

Superior tensile and shear strength for heavy loads
Resistant to UV, chemicals, and environmental stress
Works with soil, sand, or recycled aggregates
Proven performance in global civil and environmental projects

Applications:
Roads & Railways | Landfills | Slopes | Foundations | Pipelines

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

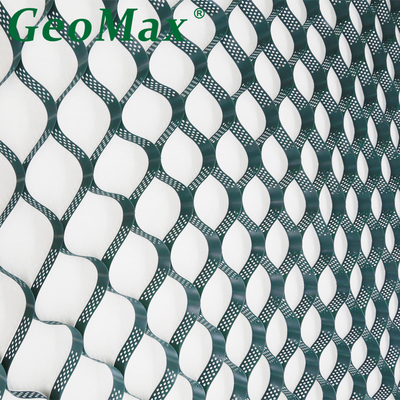

DETAILED PHOTOS

HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India 0

HDPE Geocell GM712-300mm Deep Subbase Stabilization for Railways and Runways In India 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

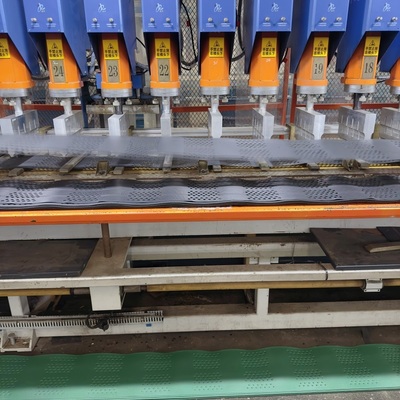

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Are there special techniques for slope installation?
Yes. Installation should proceed from the bottom of the slope upwards. Additional anchoring is often required on steeper slopes.

Can it be installed in extreme weather?
Yes, but with precautions. Avoid installation in heavy rain or on frozen subgrade. High winds may require temporary weighting of un-filled panels.

Do you provide installation support?
Yes. We provide detailed installation manuals, video guides, and direct technical support by phone or email. For large projects, on-site supervision can be arranged.
