HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy

Large Image : HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM660-100

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	660mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is an advanced HDPE cellular confinement system that enhances soil stability, load distribution, and structural performance. Engineered for durability and versatility, it delivers reliable results in roads, slopes, landfills, foundations, and pipeline projects worldwide.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

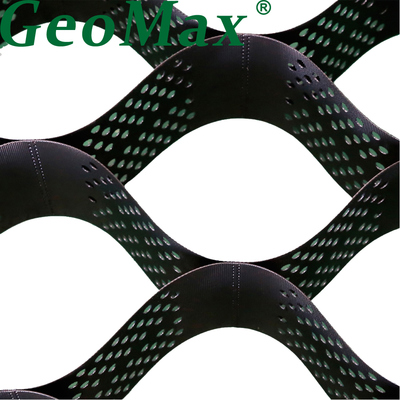

HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy 0

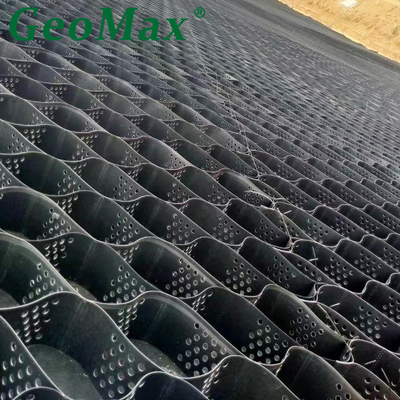

HDPE Geocell GM660-100mm Vegetated Slope Stabilization Grid, 6:1 Slope Ratio In Italy 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Are there gradation requirements for the infill?
For optimal performance, the maximum particle size should not exceed the smallest cell dimension. Well-graded, free-draining materials are generally preferred.

What are the key points during filling?
Always fill from the perimeter inward to maintain tension. Overfill the cells by 25-50mm to account for compaction and create a proper surface.

What is the best method for compaction?
Use a vibratory plate compactor or a walk-behind roller. For large areas, a smooth-drum roller can be used. Make multiple passes to achieve the required density.
