HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica

Large Image : HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-660

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	200mm	Color:	Black;Yellow;Green
Welding Distance:	660mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell provides a reliable solution for soil stabilization, erosion control, and load support. Made from high-density polyethylene (HDPE) and formed into a durable three-dimensional honeycomb structure, it efficiently distributes loads and reinforces weak soils. The system performs exceptionally under heavy stress, offering high tensile strength and resistance to UV, chemicals, and environmental degradation. Compatible with various infill materials such as soil, sand, and recycled aggregates, GeoMax® Geocell ensures long-term stability and sustainability across road, railway, slope, landfill, and foundation projects.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

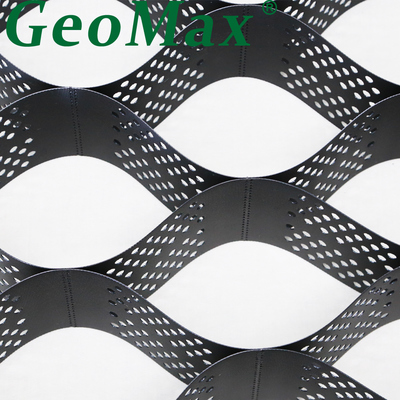

HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica 0

HDPE Geocell GM660-200mm Erosion Control System for 3:1 Slopes, Textured Surface In Jamaica 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

How do you account for long-term creep in design calculations?
Our design recommendations incorporate creep reduction factors based on long-term laboratory testing, ensuring the system's performance is maintained over its entire design life.
What is the carbon black content, and why is it important?
Our HDPE contains a minimum of 2% uniformly distributed carbon black. This is critical for providing long-term resistance to UV degradation, ensuring the product's durability before and during installation.

Specialized Applications & Scenarios (13-25)

Can GeoMax® be used for rooftop gardens or green roofs?
Yes, its lightweight nature and ability to confine soil make it ideal for creating stable, well-drained substrate layers in green roof applications.
Is it suitable for constructing retaining walls with a curved or tiered design?
Yes, the flexible nature of the panels allows them to be easily configured to build curved, tiered, or straight-faced retaining walls, offering great design flexibility.
