HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland

Large Image : HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM200-445

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	200mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM

HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell – Reliable, High-Performance Ground Reinforcement

GeoMax® Geocell is a premium solution for soil stabilization, load support, and erosion control. Constructed from high-density polyethylene (HDPE) in a robust 3D cellular structure, it delivers exceptional strength, durability, and long-term performance. The system easily integrates with soil, sand, or recycled aggregates, offering cost-effective and sustainable construction. Trusted globally, GeoMax® Geocell is widely used in roads, railways, slopes, landfills, and foundation projects, providing engineers and contractors with a dependable, efficient, and environmentally responsible solution for a wide range of infrastructure and civil engineering applications.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

DETAILED PHOTOS

HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland 0

HDPE Geocell GM445-200mm High-Strength Grid for Steep Slope Protection In Polland 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

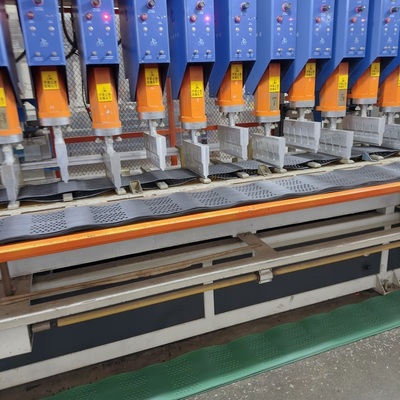

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

How is it used in pipeline construction for buoyancy control?
By creating a heavyweight, stable mattress over a pipeline, the geocell system provides negative buoyancy, preventing the pipeline from floating in high-water-table areas.

Can it be used to protect geomembranes in landfill caps and liners?
Yes, it acts as a perfect protective layer and drainage medium over geomembranes, preventing puncture from overlying materials and facilitating leachate or gas collection.

What applications is the Nano-Composite series specifically designed for?
It is engineered for extreme conditions: heavy-duty haul roads for mining, military applications (expeditionary airfields, roads), erosion control in high-energy hydraulic environments, and any project with exceptional impact or load requirements.

Is the product effective for dust suppression on unpaved roads?
Yes. By confining the surface aggregate, it prevents the loss of fines and the formation of loose material, which is a primary cause of dust.
