150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support

Large Image : 150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-445

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	150mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for soil stabilization , 150mm geocell pavement support , HDPE geocell road reinforcement

150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a modern soil stabilization solution engineered to reinforce soft ground, improve load-bearing performance, and prevent erosion. Produced from high-density polyethylene (HDPE), it forms a tough three-dimensional cellular confinement structure that locks in a variety of infill materials such as earth, sand, aggregate, or recycled fill. The material’s high durability ensures reliable long-term service, with excellent resistance to UV rays, chemical exposure, and environmental stresses. Ideal for numerous civil engineering and environmental applications—ranging from road and railway platforms to slope protection, landfill construction, and base reinforcement—GeoMax® Geocell provides engineers with a resilient, eco-friendly, and economical method for ground support and stabilization.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

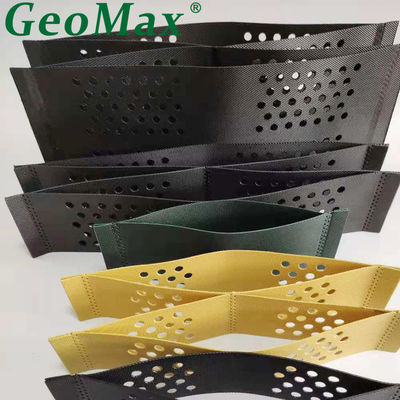

DETAILED PHOTOS

150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support 0

150mm HDPE Geocell for Soft Soil Road Reinforcement & Pavement Base Support 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

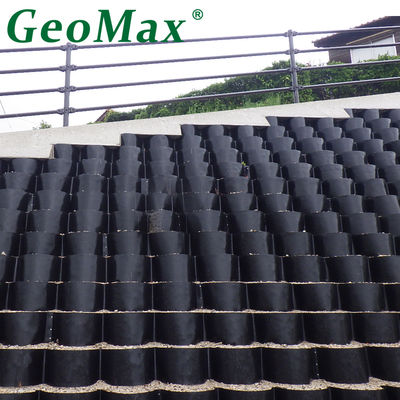

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

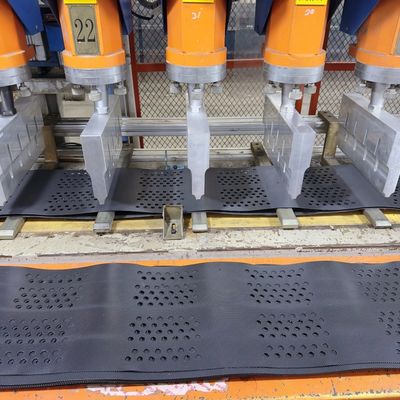

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What field tests verify installation quality?
Key verification tests include:

Plate load tests for modulus verification
Dynamic cone penetrometer tests
Nuclear density gauge measurements
Visual inspection of cell geometry and anchorage

How is in-situ modulus measured?
In-situ modulus is typically measured using:

Static plate load tests (ASTM D1196)
Light weight deflectometer tests
Falling weight deflectometer measurements
Benkelman beam tests for flexible pavements
