GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India

Large Image : GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM150-356

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation

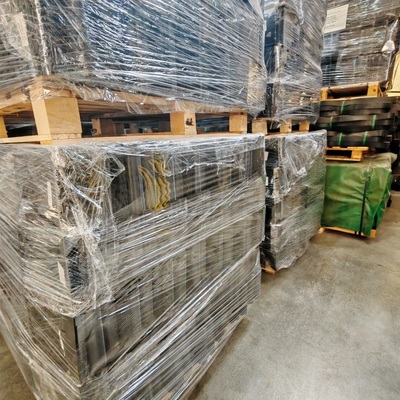

Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	150mm	Color:	Black;Yellow;Green
Welding Distance:	356mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE Geocell for road stabilization , 150mm HDPE Geocell grid , heavy-duty geocell subgrade support

GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell is a cutting-edge ground improvement solution engineered to strengthen weak soils, increase load-bearing capacity, and mitigate surface erosion. Produced from high-density polyethylene (HDPE) and formed into a durable three-dimensional cellular structure, it spreads loads evenly and works with a variety of fill materials such as earth, sand, gravel, and reclaimed aggregates.

Designed for long-term performance, the system delivers outstanding resistance to UV exposure, chemical degradation, and harsh environmental conditions. GeoMax® Geocell serves as a flexible and eco-friendly option for infrastructure, civil works, and environmental construction. It is extensively utilized in roadways, railway embankments, slope stabilization, landfill containment, and ground foundation reinforcement, offering engineers and project owners a trusted, cost-effective, and sustainable method for soil confinement and ground enhancement.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

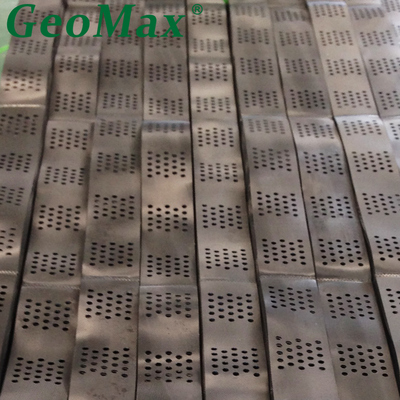

DETAILED PHOTOS

GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India 0

GM356 150mm HDPE Geocell for Heavy-Duty Road Subgrade Stabilization In India 2

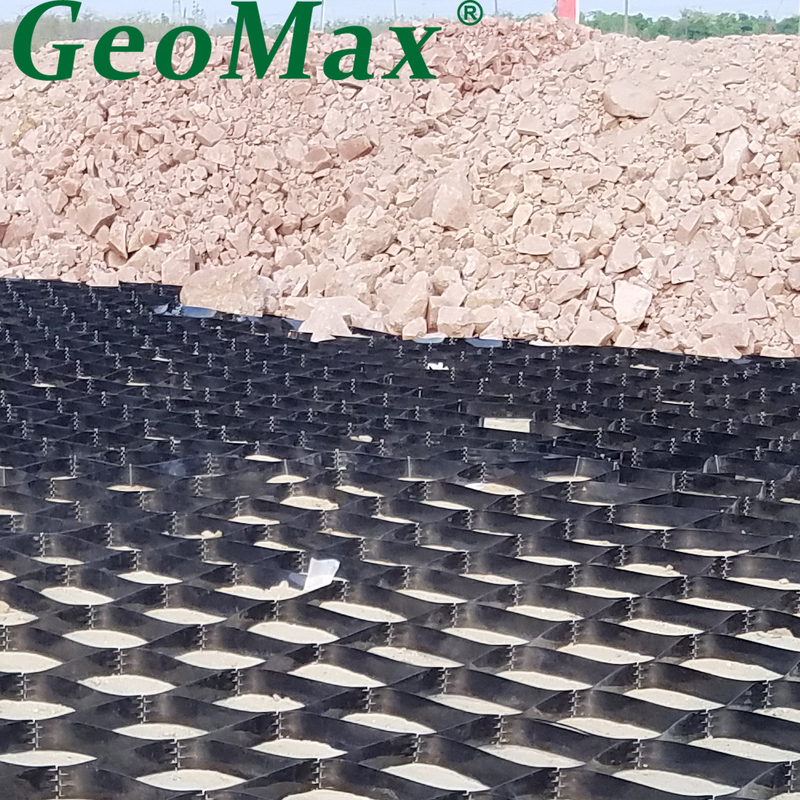

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

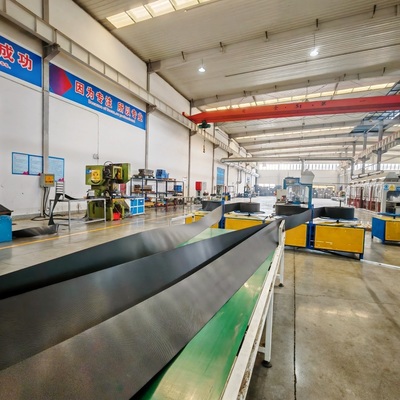

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What are the key considerations for winter construction?
Winter installation requires:

Subgrade protection from freezing
Use of non-frozen infill materials
Reduced working temperatures for material handling
Modified compaction procedures
Protection of installed layers from frost heave

How do you handle installation on steep slopes (greater than 1:1)?
Steep slope procedures include:

Temporary shoring during installation
Specialized anchoring patterns
Sequential installation from bottom to top
Use of mechanical stabilization aids
Enhanced inspection protocols
