GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes

Large Image : GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM330-100

Payment & Shipping Terms:

Minimum Order Quantity:	1000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	330mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for pedestrian paths , 100mm welding geocell for trails , HDPE geocell for bike lanes

GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® Geocell provides powerful soil confinement and load-bearing enhancement for challenging construction sites. Manufactured from tough high-density polyethylene (HDPE), its engineered 3D cellular design locks in fill materials, minimizes soil movement, and significantly boosts ground stability while reducing erosion.

Built for long-term performance, GeoMax® Geocell resists UV aging, chemical exposure, and severe environmental conditions, making it ideal for durable and low-maintenance infrastructure. As an eco-friendly and cost-saving reinforcement solution, it is widely used in highways, rail embankments, slope protection, retaining structures, landfills, and soft-soil improvement — enabling stronger, more sustainable, and future-ready construction.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

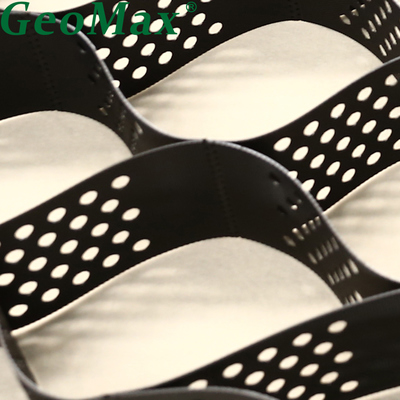

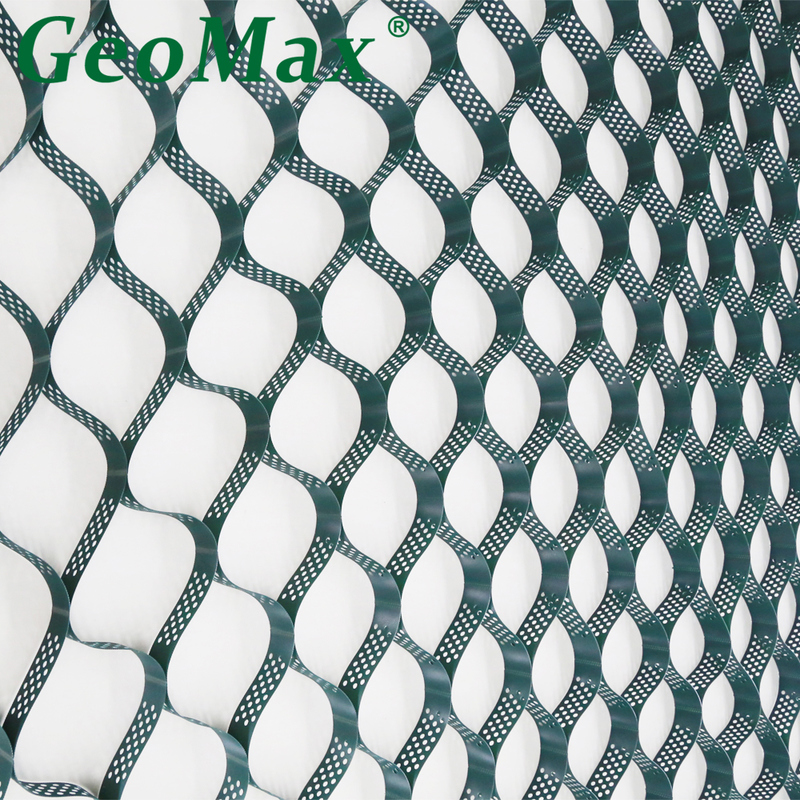

DETAILED PHOTOS

GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes 0

GM330-100mm HDPE Welding Geocell for Pedestrian Paths, Trails & Bike Lanes 2

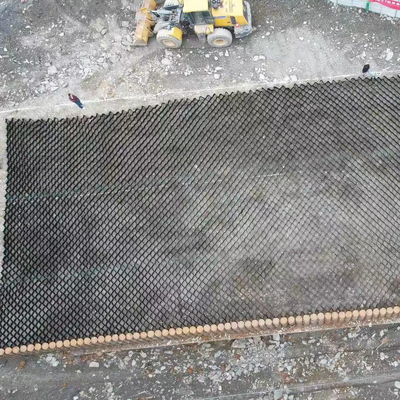

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

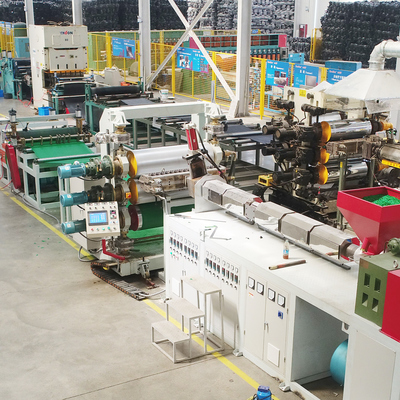

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

How do you verify long-term performance predictions?
We use:

Accelerated laboratory testing
Field performance monitoring
Case history analysis
Mathematical modeling
Periodic sampling from test sections

Design Applications

35. What are the design considerations for channel lining applications?
Channel design considers:

Hydraulic shear stresses
Flow velocity and turbulence
Bank stability requirements
Erosion potential
Vegetation establishment needs

36. How do you design for dynamic loading conditions?
Dynamic design includes:

Cyclic load testing
Fatigue resistance evaluation
Resonance frequency analysis
Damping characteristics
Permanent deformation prediction
