High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments
High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments
High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments

Large Image :  High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-356
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation

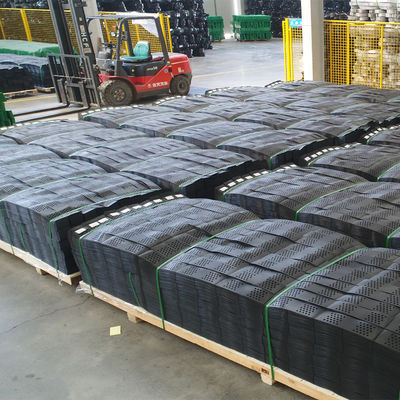

Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard； Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 356mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell confinement system

,

high load-bearing geocell

,

reinforced slopes geocell

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax® GM356 Geocell provides structural reinforcement for slopes and embankments by converting loose fill into a stabilized composite layer. The welded cellular structure improves load transfer and limits lateral deformation.
It is suitable for transportation, infrastructure, and earth-retaining projects.

SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 0 High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 1

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 2 High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 3

APPLICATIONS

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 5

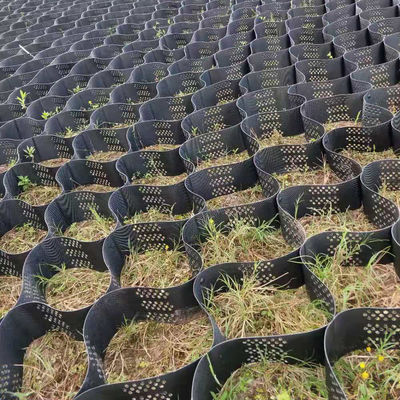

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

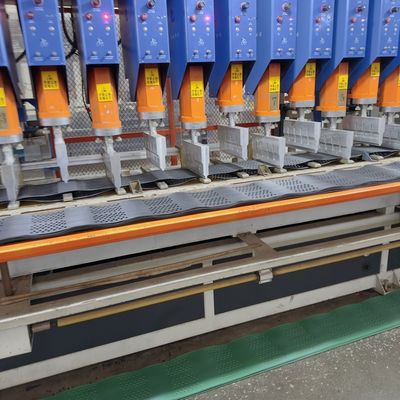

PRODUCTION LINE

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 8

INVENTION AND TESTING

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 9



PRODUCT AREA

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 10

FAQ:

Q1: Is GM356 suitable for embankment reinforcement?
Yes. It is commonly used to reinforce embankments and prevent surface deformation.

Q2: Does the system improve load distribution?
Yes. Loads are spread across the cellular network, reducing stress on the subgrade.

Q3: Can it be used with granular backfill?
Yes. Granular materials perform well when confined within the cells.

Q4: Is the system affected by long-term UV exposure?
The HDPE material contains carbon black for UV resistance in outdoor environments.

Q5: Does installation require specialized equipment?
No. Installation can be completed using standard construction tools.

High Load-Bearing GM356 HDPE Geocell Confinement System for Reinforced Slopes and Embankments 11
