Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support

Large Image : Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM75-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	75mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell slope protection , textured geocell ground support , vegetated slope geocell structure

Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support

GEOMAX® GEOCELL PRODUCT INTRODUCTION

This geocell system is designed for slope projects where ground support and vegetation establishment are both required. The cellular confinement stabilizes soil while maintaining permeability and ecological compatibility.
It is often used in landscape-integrated slope protection works.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

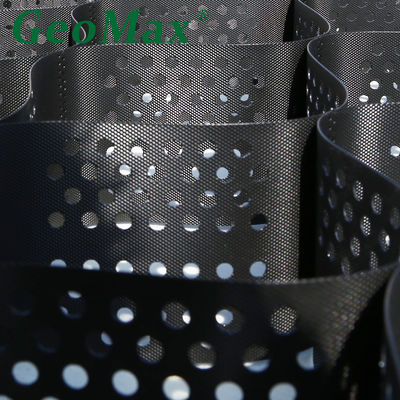

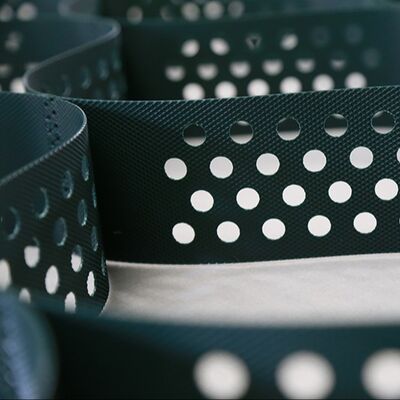

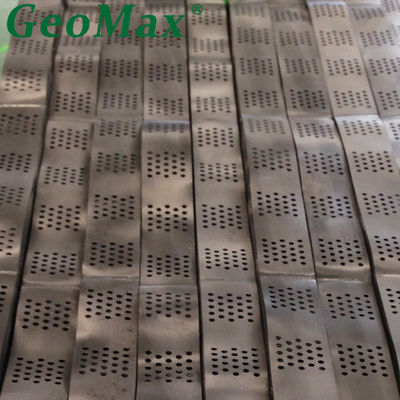

DETAILED PHOTOS

Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support 0

Textured HDPE Geocell Cellular Structure for Vegetated Slope Protection and Long-Term Ground Support 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

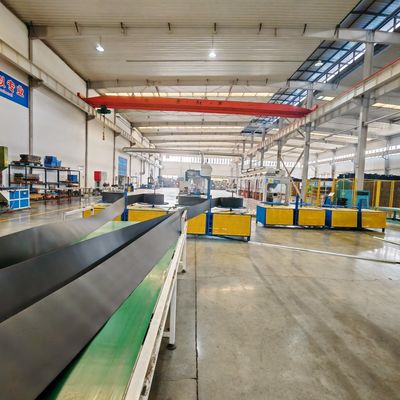

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

Q1: Can grass and plants grow through the geocell?
Yes. The cells act as planting pockets for vegetation.

Q2: Does the system interfere with natural drainage?
No. Perforated cells allow water to drain freely.

Q3: Is this suitable for environmentally sensitive areas?
Yes. The system minimizes hard surface coverage and supports natural restoration.

Q4: Can it be used on slopes adjacent to waterways?
Yes, with proper design to account for hydraulic conditions.

Q5: Does vegetation improve long-term slope stability?
Yes. Root systems enhance soil reinforcement over time.
