GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance

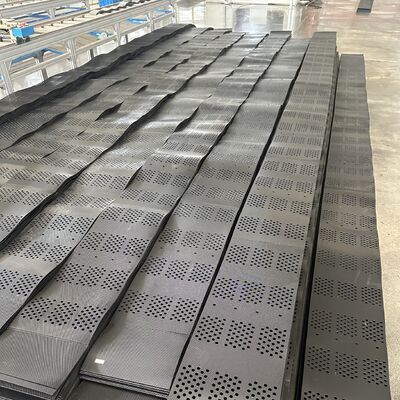

Large Image : GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for erosion control , geocell for vegetated slopes , HDPE geocell load distribution

GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is a professional designer and manufacturer of premium geocells and geosynthetic solutions, dedicated to soil stabilization and ground reinforcement projects.

Our HDPE geocell systems are professionally engineered to optimize load distribution, boost slope stability and efficiently mitigate soil erosion. They are widely applied in various civil engineering and infrastructure projects, covering road construction, slope engineering, embankment building, retaining structure construction as well as green engineering initiatives.

Crafted from high-density polyethylene and produced under stringent quality control standards, GeoMax geocells deliver exceptional durability, an extended service life and consistent, dependable performance even in severe environmental conditions. By integrating structural confinement technology with natural filling materials, our products present a cost-efficient and sustainable solution for long-term ground support needs.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

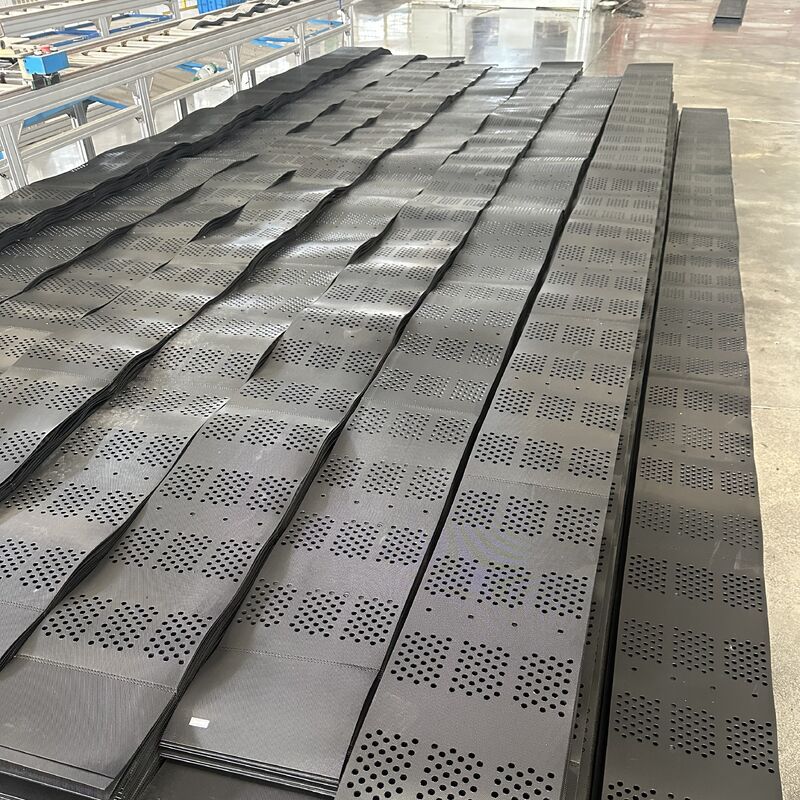

DETAILED PHOTOS

GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance 0

GM100-330 HDPE Geocell for Vegetated Slopes Load Distribution and Erosion Resistance 2

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

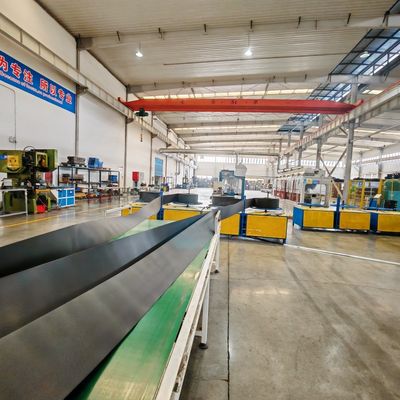

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What infill materials can be used with geocells?

Common infill materials include sand, gravel, crushed stone, recycled aggregates, and even concrete in high-load applications.

What is the typical service life of a geocell?

High-quality HDPE geocells are designed for a service life of up to 50 years when properly manufactured and installed.

What geocell heights are commonly available?

Standard geocell heights range from 50 mm to 300 mm, though custom heights can be produced for special engineering requirements.

How does geocell height affect performance?

Higher geocells provide stronger confinement and are suitable for heavy loads, while lower geocells are typically used for erosion control and light traffic areas.

What is welding distance in geocells?

Welding distance refers to the spacing between ultrasonic welds, which determines the cell size and directly affects load distribution efficiency.
