GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support
GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support
GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support

Large Image :  GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-445
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard； Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 445mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell slope stabilization

,

textured geocell root anchorage

,

geocell ground support system

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is a leading provider of high-end geocell and geosynthetic products, focusing on R&D and manufacturing solutions tailored for soil stabilization and ground reinforcement.

Our HDPE geocell systems are precision-engineered to optimize load distribution, strengthen slope stability, and effectively curb soil erosion. These systems are extensively utilized across diverse civil and infrastructure projects, such as road construction, slope and embankment engineering, retaining structure installation, and eco-friendly engineering initiatives.

Made from high-density polyethylene and manufactured in adherence to rigorous quality assurance protocols, GeoMax geocells boast outstanding durability, a prolonged service life, and stable, reliable performance—even in the harshest environmental settings. By merging structural confinement with natural filling materials, our offerings deliver a cost-effective, sustainable answer for long-term ground reinforcement requirements.


SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

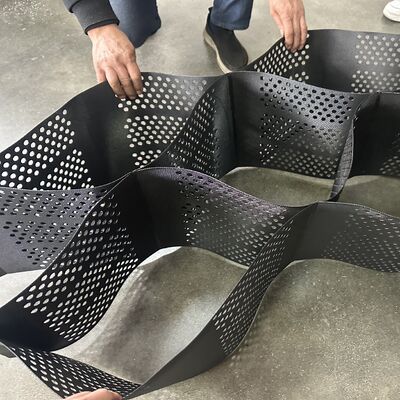

DETAILED PHOTOS

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 0 GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 1

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 2 GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 3

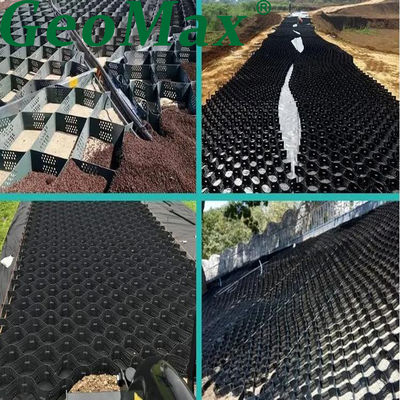

APPLICATIONS

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 5

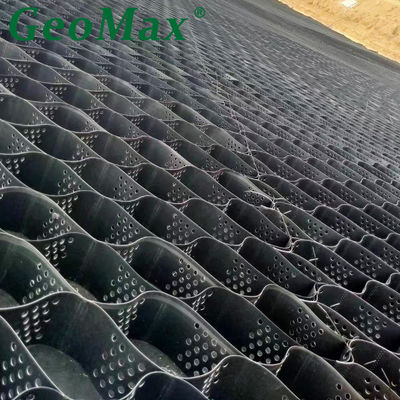

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

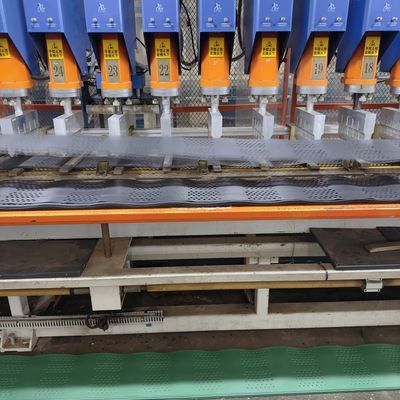

PRODUCTION LINE

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 8

INVENTION AND TESTING

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 9



PRODUCT AREA

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 10

FAQ:

How do different welding distances impact performance?

Smaller welding distances create denser cells with better confinement, while larger distances reduce material usage and cost.

Are geocells flexible or rigid?

Geocells are flexible before installation but become semi-rigid once expanded and filled, adapting well to ground deformation.

What is the difference between smooth and textured geocells?

Textured geocells provide higher friction with infill materials, improving slope stability compared to smooth-surface geocells.

Can geocells be used for vegetated slopes?

Yes. Geocells are ideal for green slope protection, allowing vegetation to grow through the cells while preventing soil erosion.

Are geocells resistant to UV exposure?

High-quality geocells contain carbon black and stabilizers that provide excellent resistance to UV degradation.

GM150-330 Textured HDPE Geocell System for Slope Stability Root Anchorage and Long-Term Ground Support 11
