Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-356
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day
Contact Now

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard； Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 356mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for heavy loads

,

cellular confinement for subgrade improvement

,

GM200 geocell structural reinforcement

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is a specialist in developing and producing high-quality geocell and geosynthetic systems, all engineered to deliver professional soil stabilization and ground reinforcement solutions.

Our HDPE geocell products are custom-designed to upgrade load distribution efficiency, reinforce slope stability, and curb erosion effectively. They serve as a core solution for a broad spectrum of civil and infrastructure undertakings, including road construction, slope and embankment reinforcement, retaining structure projects, and green engineering developments.

Fabricated from premium high-density polyethylene and subject to strict quality oversight throughout production, GeoMax geocells feature superior durability and an extended service life, maintaining steady and reliable performance even in extreme environmental conditions. By integrating structural confinement design with natural filling materials, our solutions strike a perfect balance between cost-effectiveness and sustainability, providing long-term and dependable ground support for various projects.

SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

















































DETAILED PHOTOS

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 0 GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 1

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 2 GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 3

APPLICATIONS

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 7

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

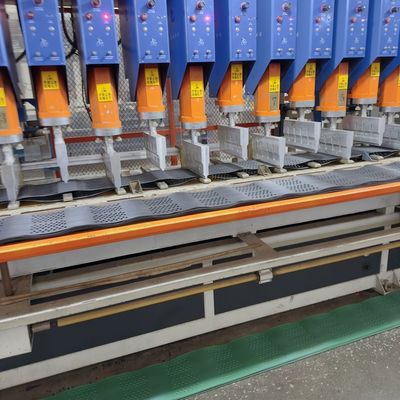

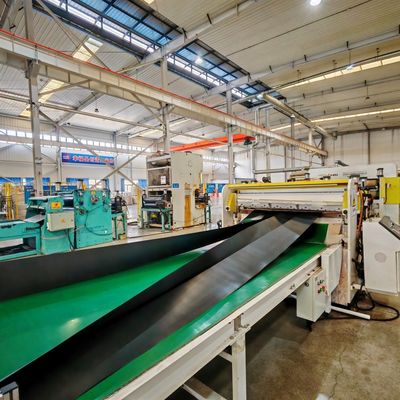

PRODUCTION LINE

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 8

INVENTION AND TESTING

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 9



PRODUCT AREA

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 10

FAQ:

Do geocells perform well in extreme temperatures?

HDPE geocells maintain their performance in both high and low temperature environments, making them suitable for diverse climates.

What standards do geocells usually comply with?

Geocells are commonly tested according to international standards such as ASTM, ISO, and relevant national specifications.

Can geocells be customized?

Yes. Geocells can be customized in terms of height, thickness, welding distance, color, and panel size.

How are geocells transported?

Geocells are delivered in collapsed panels, which saves space and reduces transportation costs.

Is geocell installation complicated?

No. Installation is relatively simple and does not require heavy machinery in most cases.

GM200 330 HDPE cellular confinement for heavy loads soft subgrade improvement structural reinforcement 11
