GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer
GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer

Large Image :  GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer

Product Details:
Place of Origin: ANHUI CHINA
Brand Name: GeoMax
Certification: CE,ISO9001-2015
Model Number: GM100-330
Payment & Shipping Terms:
Minimum Order Quantity: 3000 ㎡
Price: Negotiation
Packaging Details: Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time: 10-20 days
Payment Terms: T/T, L/C
Supply Ability: 3000㎡ per day

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer

Description
Material: 100% HDPE Plastic Thickness: 1.2-1.5mm
Surface: Smooth Or Textured Surface Tensile Strength: 25kN/m
Standard: ASTM; GB Standard; Peel Strength: 14.2 KN/m
Height: 100mm Color: Black;Yellow;Green
Welding Distance: 330mm Density: 0.950 G/cm3
Certificate: CE;ISO;ASTM
Highlight:

HDPE geocell for soil confinement

,

deep cell geocell for load transfer

,

GM250 geocell for weak soil

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is committed to R&D, design and manufacturing of eco-friendly geocells and geosynthetic products, focusing on delivering green, high-performance solutions for soil stabilization and ground reinforcement in engineering projects.

Our HDPE geocell systems are elaborately engineered to optimize load distribution, reinforce slope stability and achieve efficient erosion control, and they stand as the ideal green supporting materials for a wide array of civil infrastructure projects – including road construction, slope and embankment reinforcement, retaining structure construction, as well as various eco-engineering initiatives.

Crafted from high-density polyethylene with stringent quality control throughout the entire production process, our geocells feature exceptional anti-aging properties and weather resistance, maintaining long-term structural stability and reliable performance even in extreme natural environments with a service life far exceeding industry standards. Most importantly, leveraging the structural confinement principle and combined with natural filling materials, our products eliminate the need for large quantities of high-energy-consumption building materials. While realizing long-term stable ground reinforcement, they drastically reduce project carbon emissions and material costs, creating a truly cost-effective, low-carbon and sustainable geotechnical engineering solution that fully aligns with the development concept of green infrastructure.


SPECIFICATIONS


Index Properties Test Method Units Values
Material - - 100% Virgin HDPE
Carbon Black content ASTM D 1603 % ≥1.5
Density ASTM D 1603 g/cm3 0.935-0.965
Sheet Thickness ± 3% ASTM D 5199 mm 1.5
Seam Peel Strength USACE GL-86-19 KN/m ≥14.2
Tensile strength at Yield ASTM D 1603 KN/m ≥22
Environmental stress crack resistance ASTM D 1603 hrs ≥5000
OIT oxidation induction time ASTM D 1603 min ≥150

Type GM330 GM356 GM400 GM432 GM445 GM500 GM660 GM712
Welding Distance(mm) ± 3% 330 356 400 432 445 500 660 712
Cell Depth(mm) ± 3% 50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3% 250 x 210 260 x 225 290 x 260 320 x 275 315 x 300 360 x 300 470 x 450 510 x 475
Expanded Cell numbers(width×length) 10 x 34 9 x 34 8 x 34 8 x 34 8 x 34 7 x 34 5 x 34 5 x 34
Expanded Section size (width×length) (m) ± 3% 2.50 x 7.14 2.34 x 7.65 2.32 x 8.84 2.56 x 9.35 2.52 x 10.2 2.52 x 11.22 2.35 x 15.3 2.55 x 16.15
Expanded Section Area (m2) ± 5% 17.85 17.9 20.5 23.94 25.7 28.74 35.95 41.18

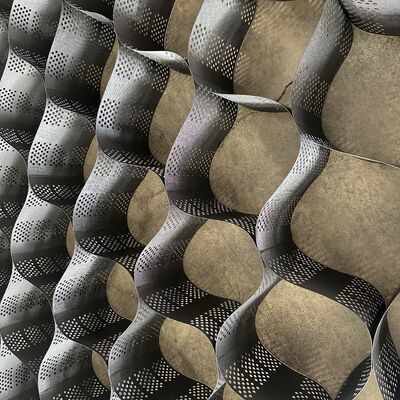

DETAILED PHOTOS

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 0 GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 1

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 2 GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 3

APPLICATIONS

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 4

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.



GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 5

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.





GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 6

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.





GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 7

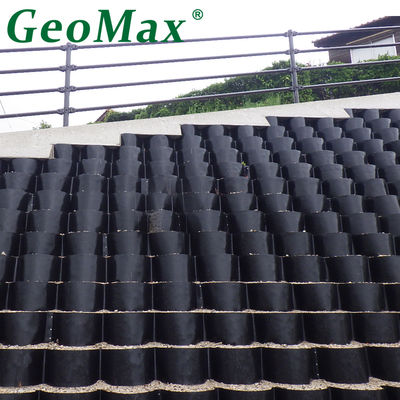

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

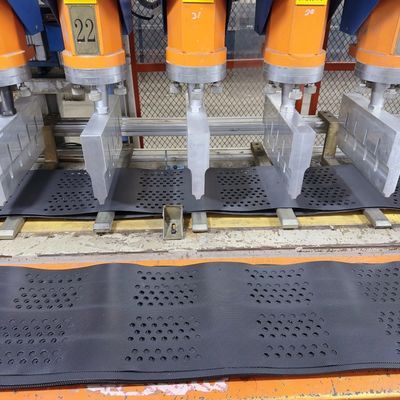

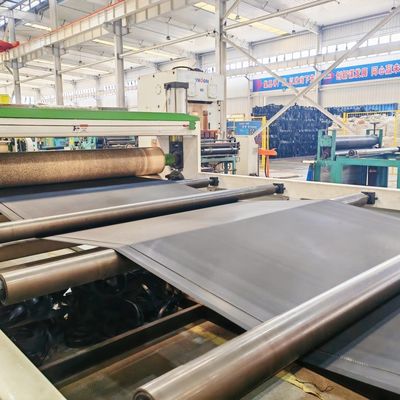

PRODUCTION LINE

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 8

INVENTION AND TESTING

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 9



PRODUCT AREA

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 10

FAQ:

Can geocells be used underwater?

Yes. Geocells perform well in submerged conditions and are commonly used in channel and shoreline protection.


Are geocells environmentally friendly?

Geocells reduce the need for natural aggregates and allow the use of local or recycled materials, lowering environmental impact.


 Do geocells prevent erosion?

Yes. By confining soil and reducing surface runoff velocity, geocells effectively control erosion.


Can geocells be filled with concrete?

Yes. Concrete-filled geocells are often used for channel lining and slope armor in high-flow areas.


How is geocell quality evaluated?

Quality is assessed through tests such as tensile strength, seam strength, thickness, density, and oxidation resistance.

GM250 330 deep cell HDPE geocell for high fill thickness weak soil confinement load transfer 11
