GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment

Large Image : GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment

Product Details:

Place of Origin:	ANHUI CHINA
Brand Name:	GeoMax
Certification:	CE,ISO9001-2015
Model Number:	GM100-445

Payment & Shipping Terms:

Minimum Order Quantity:	3000 ㎡
Price:	Negotiation
Packaging Details:	Folded strips are wrapped by film and layed on pallets or as requested
Delivery Time:	10-20 days
Payment Terms:	T/T, L/C
Supply Ability:	3000㎡ per day

Contact Now

GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment

Description

Material:	100% HDPE Plastic	Thickness:	1.2-1.5mm
Surface:	Smooth Or Textured Surface	Tensile Strength:	25kN/m
Standard:	ASTM; GB Standard；	Peel Strength:	14.2 KN/m
Height:	100mm	Color:	Black;Yellow;Green
Welding Distance:	445mm	Density:	0.950 G/cm3
Certificate:	CE;ISO;ASTM
Highlight:	HDPE geocell for drainage control , GM100 445 geocell for channel protection , HDPE geocell for vegetation establishment

GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment

GEOMAX® GEOCELL PRODUCT INTRODUCTION

GeoMax is a leading innovator in designing and manufacturing high-performance geocells and geosynthetic solutions, with an unwavering focus on delivering ultra-durable ground reinforcement and soil stabilization products for engineering projects worldwide.

Our HDPE geocell systems are precision-engineered for maximum structural resilience—boasting optimized load distribution, reinforced slope stability, and highly effective erosion control—making them a staple for all types of civil and infrastructure works, including road construction, slope and embankment reinforcement, retaining structure builds, and green engineering projects.

Constructed from premium high-density polyethylene and manufactured under the strictest quality control protocols at every stage, GeoMax geocells deliver industry-leading durability and an exceptionally long service life. Engineered to withstand the harshest environmental conditions—from extreme temperatures and heavy moisture to abrasive soil and prolonged UV exposure—our geocells maintain unwavering structural integrity and reliable performance, free from premature wear, deformation or degradation for decades of continuous use. By pairing this rugged, long-lasting structural confinement with natural fill materials, our products deliver a one-time investment in ground support that stands the test of time, offering a highly cost-effective, low-maintenance solution for long-term geotechnical stability.

SPECIFICATIONS

Index Properties	Test Method			Units				Values
Material	-			-				100% Virgin HDPE
Carbon Black content	ASTM D 1603			%				≥1.5
Density	ASTM D 1603			g/cm3				0.935-0.965
Sheet Thickness ± 3%	ASTM D 5199			mm				1.5
Seam Peel Strength	USACE GL-86-19			KN/m				≥14.2
Tensile strength at Yield	ASTM D 1603			KN/m				≥22
Environmental stress crack resistance	ASTM D 1603			hrs				≥5000
OIT oxidation induction time	ASTM D 1603			min				≥150

Type	GM330	GM356	GM400		GM432	GM445	GM500		GM660	GM712
Welding Distance(mm) ± 3%	330	356	400		432	445	500		660	712
Cell Depth(mm) ± 3%	50,75,100,150,200,250
Dimensions
Expanded Cell Size (width×length) (mm) ± 3%	250 x 210	260 x 225	290 x 260		320 x 275	315 x 300	360 x 300		470 x 450	510 x 475
Expanded Cell numbers(width×length)	10 x 34	9 x 34	8 x 34		8 x 34	8 x 34	7 x 34		5 x 34	5 x 34
Expanded Section size (width×length) (m) ± 3%	2.50 x 7.14	2.34 x 7.65	2.32 x 8.84		2.56 x 9.35	2.52 x 10.2	2.52 x 11.22		2.35 x 15.3	2.55 x 16.15
Expanded Section Area (m2) ± 5%	17.85	17.9	20.5		23.94	25.7	28.74		35.95	41.18

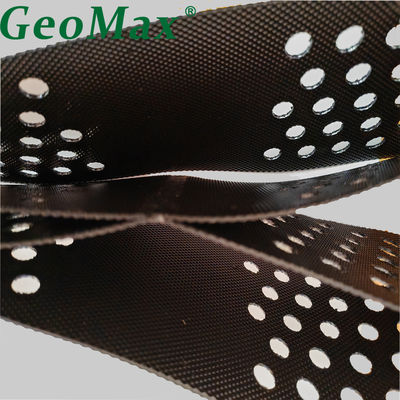

DETAILED PHOTOS

GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment 0

GM100 445 HDPE Geocell For Channel Protection Drainage Control Vegetation Establishment 2

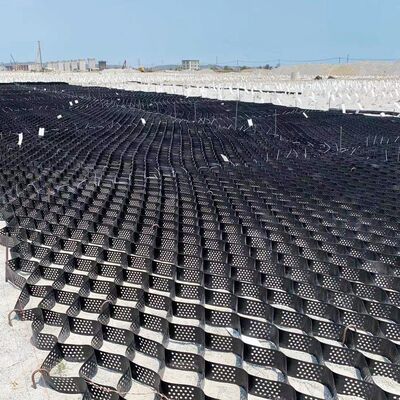

APPLICATIONS

SOIL REINFORCEMENT

Geomax®(Hdpe Geocell) is the solution to soil stabilization or soil reinforcement. It can increase the bearing capacity of the pavement and avoid cracking of the pavement.

SLOPE PROTECTION

Geomax®(Hdpe Geocell) is the obvious choice for slope protection or erosion control. It has both good drainage effect and slope protection.

CHANNEL PROTECTION

Geomax®(Hdpe Geocell) delivers stability and protection of channels
exposed to erosive conditions ranging from low to high flows, either intermittent or continuous.

RETAINING WALLS

Geomax®(Hdpe Geocell) offers highly permeable and acts as a great number of planting pots, allowing rainwater to infiltrate, minimizing runoff.

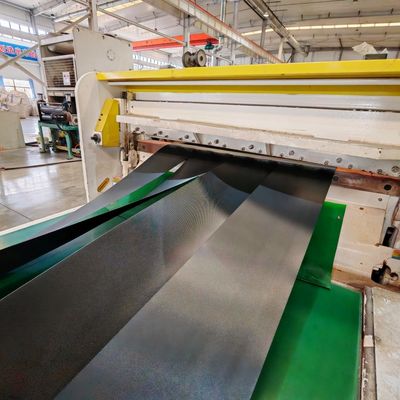

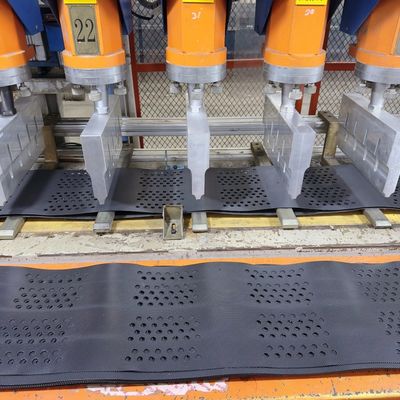

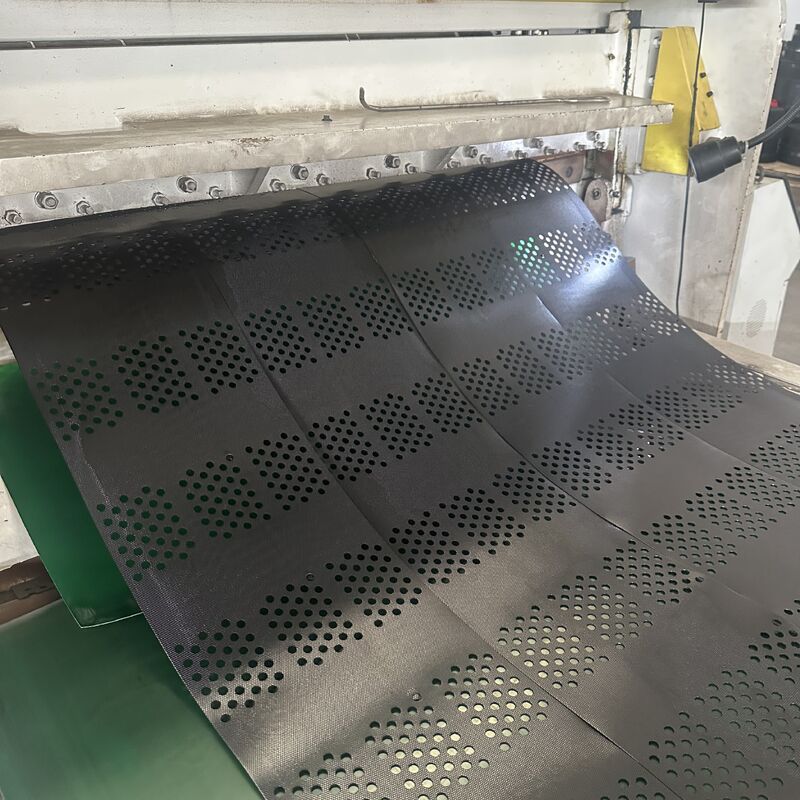

PRODUCTION LINE

INVENTION AND TESTING

PRODUCT AREA

FAQ:

What is seam strength in geocells?

Seam strength refers to the resistance of welded joints and is critical for overall structural integrity.

Are geocells suitable for temporary roads?

Yes. Geocells are commonly used for temporary access roads and construction platforms.

Can geocells handle dynamic loads?

Geocells perform well under repeated and dynamic loads, such as vehicle traffic.

How do geocells reduce rutting?

The confinement effect limits lateral movement of aggregates, minimizing rut formation.

Are geocells affected by chemicals?

HDPE geocells have strong resistance to most acids, alkalis, and salts.
